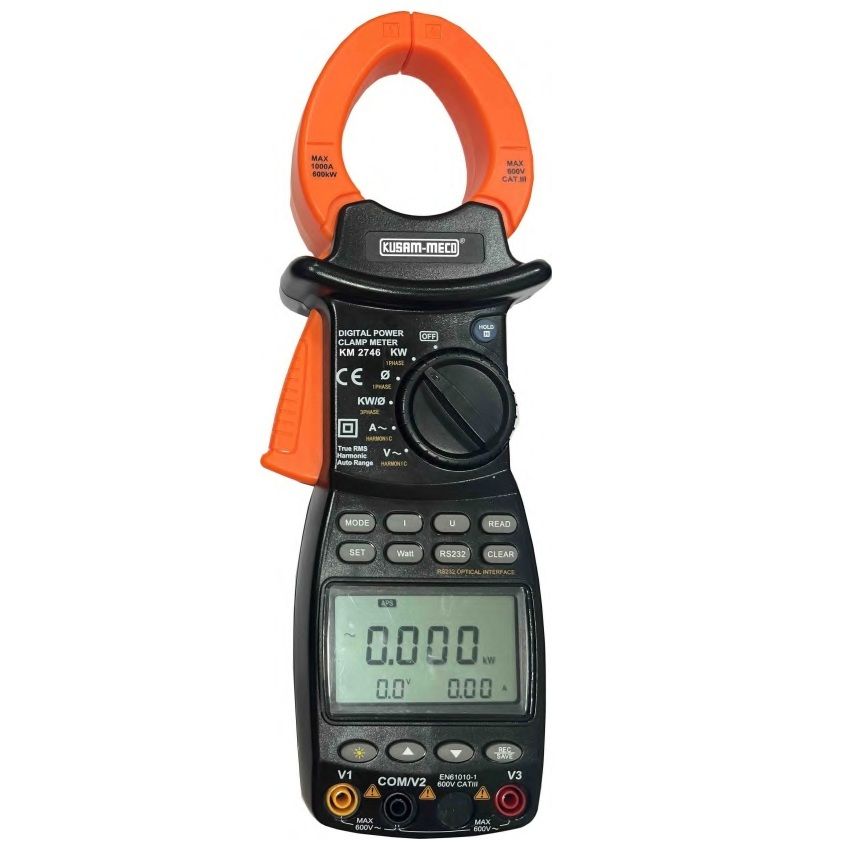

Kusam Meco KM-2746 TRMS Clamp Meter

Kusam Meco KM 2746 – TRMS Power Clamp Meter with Harmonic Analysis

The Kusam Meco KM 2746 is a high-performance True RMS clamp meter designed to measure AC voltage, AC current, single/three-phase power, power factor, frequency, and harmonics with high accuracy. Equipped with a wide 55mm jaw opening and large 6000-count LCD, it offers comprehensive testing for industrial and commercial applications.

🔧 Key Features:

• True RMS measurements up to 1000A AC
• 1-phase & 3-phase harmonic analysis (1st to 20th order)
• Single and three-phase power calculation (kW, kVA, kVAr)
• PC Interface for real-time data monitoring
• Automatic range selection, Hold, Over-range display
• Wide operating temp: 0°C to 40°C

📦 Package Includes:

• Clamp Meter Unit
• Test Probes & Clip
• Software CD
• User Manual
• 4 x AA Batteries
• Carrying Case

📐 Technical Specifications:

• AC Voltage: 0.1V – 600V (±1.0%)
• AC Current: 0.01A – 1000A (±2.0%)
• Power Factor: 0.3 – 1 (±0.2%)
• Harmonics: up to 20th Order
• Frequency: 30Hz – 1kHz (±0.5%)
• Dimensions: 300 x 103 x 51 mm
• Weight: Approx. 500g

Perfect for industrial electricians, power engineers, and technicians who need accurate harmonic and power measurements.
