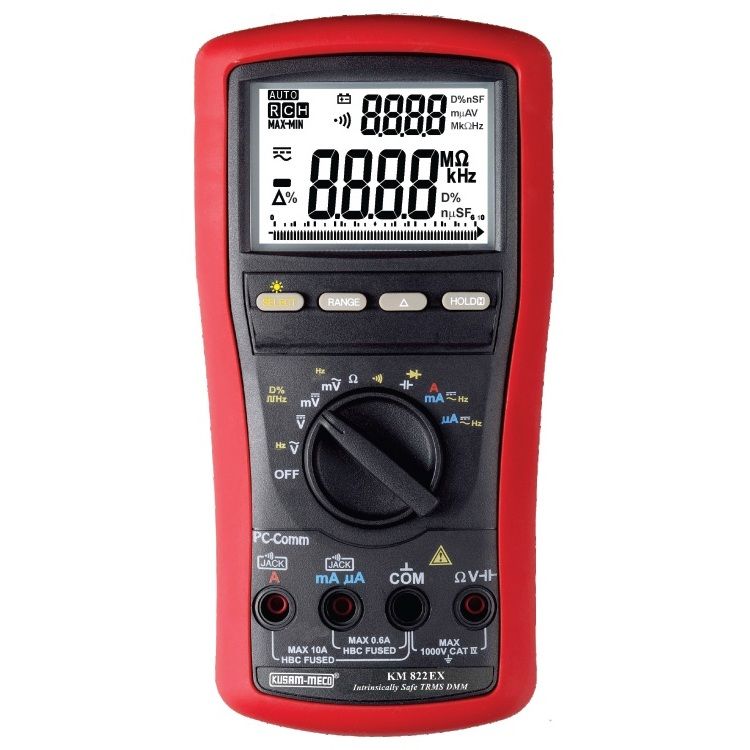

Kusam Meco KM-822-EX - Intrinsically Safe True RMS Digital Multimeter with PC Interface.

The KM 822EX is a highly accurate True RMS digital multimeter designed for safe usage in hazardous environments. With certification for explosive atmospheres (Ex ib IIA T4 Gb / ib I Mb), it's ideal for industrial applications including mining and petrochemical sectors. It features a dual backlit display, auto-ranging, data logging, and PC interface capability for comprehensive electrical diagnostics.

Electrical Specifications:
• DC/AC Voltage : 60mV ~ 1000V
• DC/ AC Current : 600mA ~ 10A
• Resistance : 0.1W ~ 60MW
• Frequency : 5Hz ~ 1MHz
• Capacitance : 60nF ~ 20mF

Marking On Meter:
• Ex ib I Mb
• Ex ib IIC Gb
• SAEx MS/09-291X.
• Ex ib falls under Zone 1 which is an area where flammable gas can occur in normal operating conditions.

Accessories:
Test lead pair, Battery installed, User Manual & Carrying case

Optional Accessories:
USB interface kit TBU-86X, TBMH-01 Magnetic Hanger

Applications:
- Electrical measurements in explosive environments
- Use in underground coal mines and hazardous areas
- Troubleshooting industrial and electrical installations
- Voltage, current, resistance, and continuity testing
