CIE DIT-5000 – 5kV Digital Insulation Tester
SKU CIE-DIT-5000
₹9,750
On Sale
Price includes GST (18%) ₹1,487.29
In stock
1
Save this product for later
CIE DIT-5000 – 5kV Digital Insulation Tester
Product Details
Brand: CIE
MPN: DIT-5000

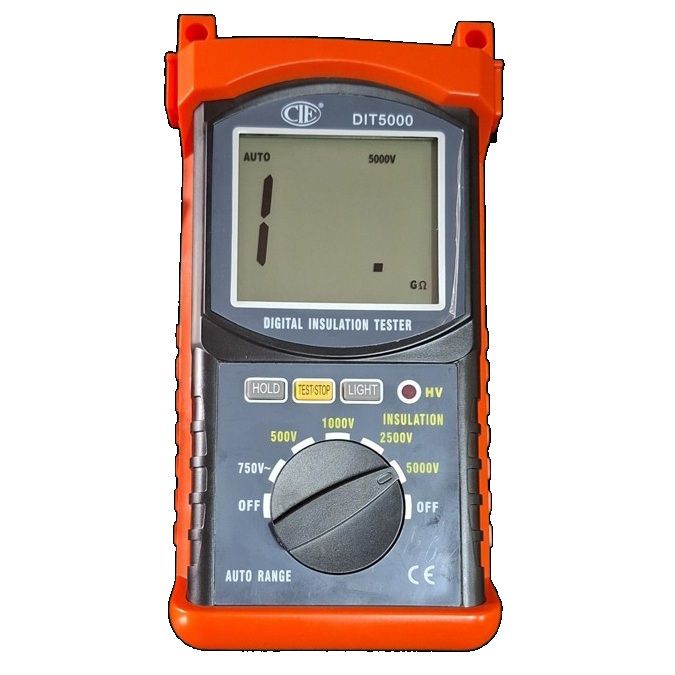

CIE DIT-5000 – 5kV Digital Insulation Tester (5000V High Voltage Megger)
The CIE DIT-5000 Digital Insulation Tester is a professional 5kV high voltage insulation resistance tester designed for accurate testing of insulation health in transformers, motors, cables, switchgear and industrial electrical installations.
With selectable test voltages of 500V, 1000V, 2500V and 5000V and an insulation resistance measurement range up to 200GΩ, this 5000V digital megger is ideal for preventive maintenance, commissioning and field testing applications.
Key Features of CIE DIT-5000 5KV Insulation Tester
- Selectable test voltages: 500V / 1000V / 2500V / 5000V
- Insulation resistance range: 1MΩ to 200GΩ
- High voltage insulation testing with 1mA short circuit current
- Measures AC voltage up to 750V
- Large backlit LCD display (68 × 55 mm)
- Automatic zero calibration & polarity indication
- Over-range indication and data hold function
- LED indication for high voltage output mode
- Portable, rugged design suitable for outdoor use
Applications of 5000V High Voltage Insulation Tester
The CIE DIT-5000 is widely used as a 5kV insulation tester in:
- Power & distribution transformers
- Electric motors and generators
- HT & LT power cables
- Switchgear, breakers and panels
- Industrial electrical maintenance & audits
Technical Specifications
| Test Voltage | 500V / 1000V / 2500V / 5000V |
| Insulation Resistance | 1MΩ – 200GΩ |
| Short Circuit Current | 1mA |
| AC Voltage Measurement | Up to 750V |
| Display | 3½ digit backlit LCD |
| Power Supply | 6 × 1.5V AA Batteries |
| Dimensions | 218 × 122 × 75 mm |
| Weight | Approx. 900 g (with batteries) |
Standard Accessories
- Dedicated high voltage test leads
- 6 × AA batteries
- User manual
- Heavy-duty plastic carrying case
Why Buy CIE DIT-5000 from IndiaMeters?
- Genuine CIE instruments
- Technical support before & after purchase
- Fast dispatch across India
- Trusted supplier of industrial test equipment
Frequently Asked Questions
Is CIE DIT-5000 suitable for transformer insulation testing?
Yes, this 5kV insulation resistance tester is ideal for testing power and distribution transformers during maintenance and commissioning.
What is the maximum resistance it can measure?
The tester measures insulation resistance up to 200GΩ.
Is this a portable high voltage insulation tester?
Yes, it is a compact, battery-powered and field-ready 5000V digital insulation tester.
