Cabs Electra CE-0102AC-5 Digital Ammeter Controller
Product Details
Brand: Cabs Electra
MPN: CE-0102AC-5

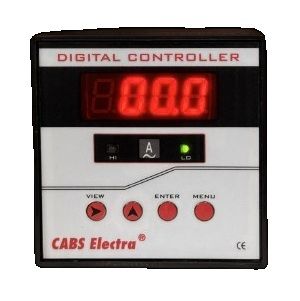

CABS Electra CE 0102AC-5 Digital 1 PHASE Ammeter Controller | 96x96 Panel Meter
Professional Digital Ammeter with HI/LO Setpoints for Industrial Load Control & Energy Management
Key Features
✅
Precise Current Measurement
Microprocessor-based digital ammeter with 0.5% FS accuracy
✅
Dual Setpoint Control
HI & LO adjustable setpoints for increasing/decreasing mode control
✅
Adjustable CT Ratios
Compatible with CTs up to 3000/5A or 3000/1A as per model
✅
Relay Outputs
2 NO/NC relay contacts (230V, 500mA) for external control
✅
Clear 4-Digit Display
Bright LED display for easy reading in industrial environments
✅
Standard Panel Size
96x96mm bezel with 82x82mm cutout for easy installation
Technical Specifications
| Parameter | CE 0102AC-1 (1A Model) | CE 0102AC-5 (5A Model) |
|---|---|---|
| Input Current | 1A ±10% | 5A ±10% |
| Max CT Ratio | 3000/1A | 3000/5A |
| Display | 4-Digit LED (3000 counts max) | |
| Set Points | Low: 0.75 FS, High: >Low to +10% FS | |
| Relay Contacts | 2 NO/NC, 230V, 500mA max | |
| Control Power | 90-270V AC/DC | |
| Accuracy | 0.5% FS ±4 digits | |
| Operating Temperature | 0°C to 70°C | |
| Bezel Size | 96mm × 96mm | |
| Cutout Size | 82mm × 82mm | |
Applications
Industrial Motor Control Panels
DG Set Monitoring Systems
Energy Management Systems
Industrial Heater Control
Pump Control Panels
Power Distribution Systems
Why Choose CABS Electra Ammeter?
Energy Saving
HI/LO setpoints help optimize load operation, reducing electricity consumption
Equipment Protection
Prevents damage from over-current and under-current conditions
Easy Installation
Standard 96x96mm size fits most industrial panels with included side clamps
Reliable Performance
ISO 9001:2013 certified manufacturing for consistent quality
Connection Diagram
Refer to the connection diagram in the product images for proper wiring instructions.
Shipping & Warranty
✅ 12 months manufacturer warranty
✅ Technical support available
✅ GST Invoice provided
