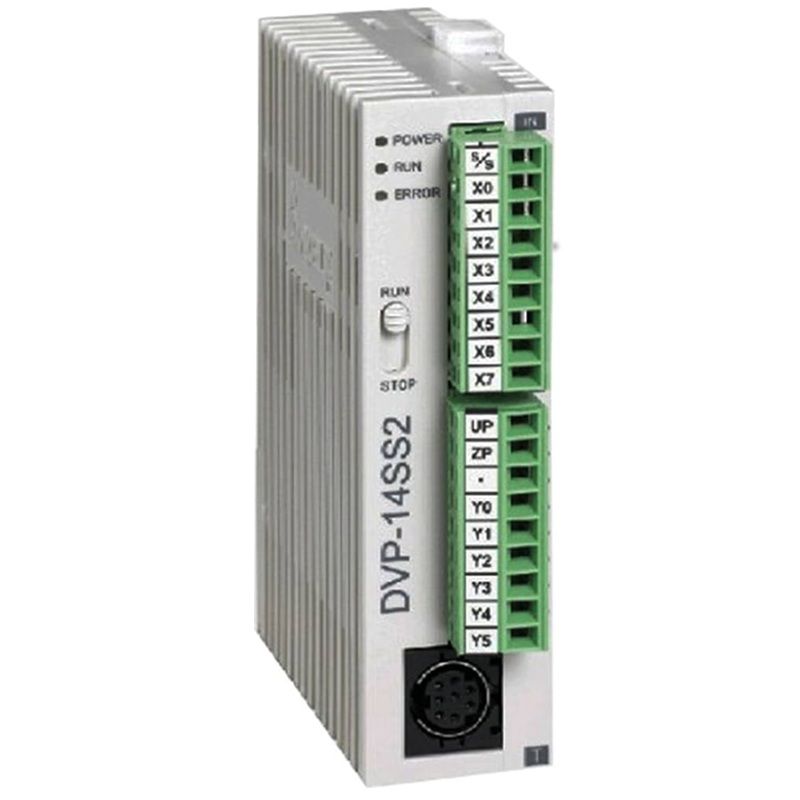

Delta DVP14SS211R DVP-SS2 Slim PLC CPU – 14-Point (relay output)

Overview

The Delta DVP14SS211R is a 14-point (8DI + 6DO) CPU from Delta Electronics' DVP-SS2 slim-type PLC family, built as a compact, panel-space-saving control unit for machine and process automation. It carries a relay output configuration on its onboard I/O and ships as a bare, factory-fresh CPU intended for panel builders, OEM machine builders and system integrators who need a reliable, well-documented micro PLC without paying for functions their machine does not use.

Relay outputs switch AC or DC loads directly and are the preferred choice wherever contactors, solenoid valves, indicator lamps or small motor starters need to be driven without an external interposing relay. As a slim-type DVP CPU, the DVP14SS211R keeps its footprint narrow so panel designers can fit more control in the same enclosure width, while still supporting Delta's full range of DVP-S series left-side and right-side expansion modules for digital, analog, temperature and communication I/O.

Key Features

• Onboard I/O: 14-point (8DI + 6DO)
• Program capacity: 8K steps
• Maximum expandable I/O: 494 points (14 + 480 via expansion)
• Communication ports: Built-in RS-232 & RS-485, Modbus ASCII/RTU (master/slave)
• High-speed pulse output: 4 points (Y0–Y3), max. 10 kHz
• Supports automatic PID temperature-loop auto-tuning
• Compatible with all DVP-S series left/right expansion modules
• No battery required for program retention on flash memory

Technical Specifications

Applications

• Packaging and labelling machines
• Conveyor and material-handling automation
• Small textile and printing machinery
• Standalone machine control panels
• Retrofit of relay-logic control panels

Why Choose Delta SS2 Series

The DVP-SS2 keeps Delta's original slim-PLC sequential control logic but adds faster scan execution and better real-time monitoring than the earlier SS series, making it a dependable, low-cost entry point CPU for straightforward machine sequencing where 14 onboard I/O points and 8K steps of program memory are sufficient.

Compatible Products

The DVP14SS211R accepts Delta's DVP-S series left-side and right-side slim expansion modules, covering digital input/output modules (DVP-SN, DVP-SP, DVP-SM series), analog input/output modules (DVP-S series A/D, D/A, temperature and load-cell modules), and, depending on the CPU's built-in ports, RS-485/PROFIBUS/DeviceNet communication modules. Programming is done with Delta's WPLSoft (ladder) or ISPSoft (IEC 61131-3) software over the CPU's built-in serial, USB or Ethernet port, and the CPU can be paired with a Delta DOP-series HMI for operator interface functions.

Package Contents

• 1 x Delta DVP14SS211R PLC CPU
• Terminal block cover / spare terminal connector (where applicable to the model)
• DIN rail mounting clip (built into the housing)
• Basic instruction sheet

Programming cable, expansion modules, power supply and HMI are not included and should be ordered separately based on your panel design.

Warranty, Compliance & Ordering Information

Frequently Asked Questions

Is the DVP14SS211R a stand-alone CPU or does it need extra modules to run?

The DVP14SS211R is a complete CPU with onboard I/O and can run a machine on its own; expansion modules are only needed if your application requires more I/O points, analog channels or additional communication ports than the CPU provides natively.

Can I mix relay and transistor output CPUs with the same expansion modules?

Yes. Delta's DVP-S series expansion modules are designed to work across the SS2, SA2, SE, SX2 and SV2 CPU family regardless of whether the base CPU uses relay or transistor outputs, as long as the module is a compatible DVP-S left-side or right-side type.

Does IndiaMeters supply this as a genuine Delta product?

Yes, IndiaMeters sources the DVP14SS211R through Delta Electronics' authorised distribution channel in India so you receive a genuine unit eligible for manufacturer support.
