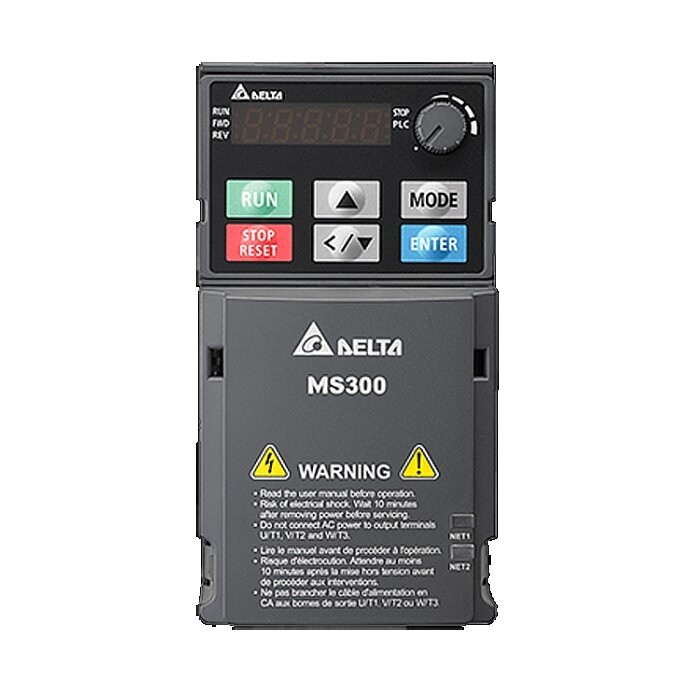

Delta MS300 VFD38AMS43ANSAA | Delta VFD - Delta AC Drive 25 HP Input 3ph

Home/Home/Variable Frequency Drive ( VFD )
Product Details
Brand: Delta
Rating (HP): 25
Input: 3 phase

Delta MS300 series Variable Frequency Drive 18.5KW / 25HP - VFD32AMS43ANSAA

Delta’s MS300 series is a standard compact vector control drive that inherits Delta’s superior drive technology. It supports both IM and PM motor control for application flexibility and provides STO safety mechanism. Also built-in various essential functions, including PLC capacity for simple programming needs, a communication slot for various communication cards, and a USB port to make data uploads and downloads fast and easy. Saving space, reducing setup and wiring time, while providing high efficiency and stability system —all included in the MS300 series with drive size reduced up to 40%.

Drive, AC, 25 Hp, 460V 3-Phase Input/ 3-Phase Output
Specifications
Part Number: VFD38AMS43ANSAA
Nominal Input VAC: 480 Volts AC
Input Range VAC: 380 to 480 Volts AC
HP: 25 HP
Amps (HD): 38A
Amps (ND): 41A
Input Phase : 3PH
Operator Controls : Sold Seperately, See Accessories
Brake Type : DC Injection; Dynamic Braking
Motor Control-Max Level: Open Loop Vector-(Sensorless Vector)
Closed Loop: NO
AC Line Regenerative: NO
Dynamic Braking Trans: Included
Enclosure Rating: IP20
Frame Size : F1
Height: 11.81 Inches
Width: 6.89 Inches
Depth: 7.56 Inches
Net Weight: 20 Lbs.

keywords: vfd, variable frequency drive 18.5 KW, delta vfd, delta vfd 25hp, delta vfd 25 hp, delta vfd 18.5kw, delta vfd 18.5 kw, 25hp vfd delta, 25 hp drive delta, 25hp vfd drive delta, 25 hp vfd drive price, 25 hp vfd price, 25 hp ac drive, 25 hp ac drive price, 25 hp delta ac drive, 25 hp motor speed control, 25 hp variable speed controller, 25 hp motor variable speed drive, 25 hp variable speed vfd, 18.5 kw delta vfd price, delta ms300 price, delta ms3000 25 hp price, Delta VFD38AMS43ANSAA price
