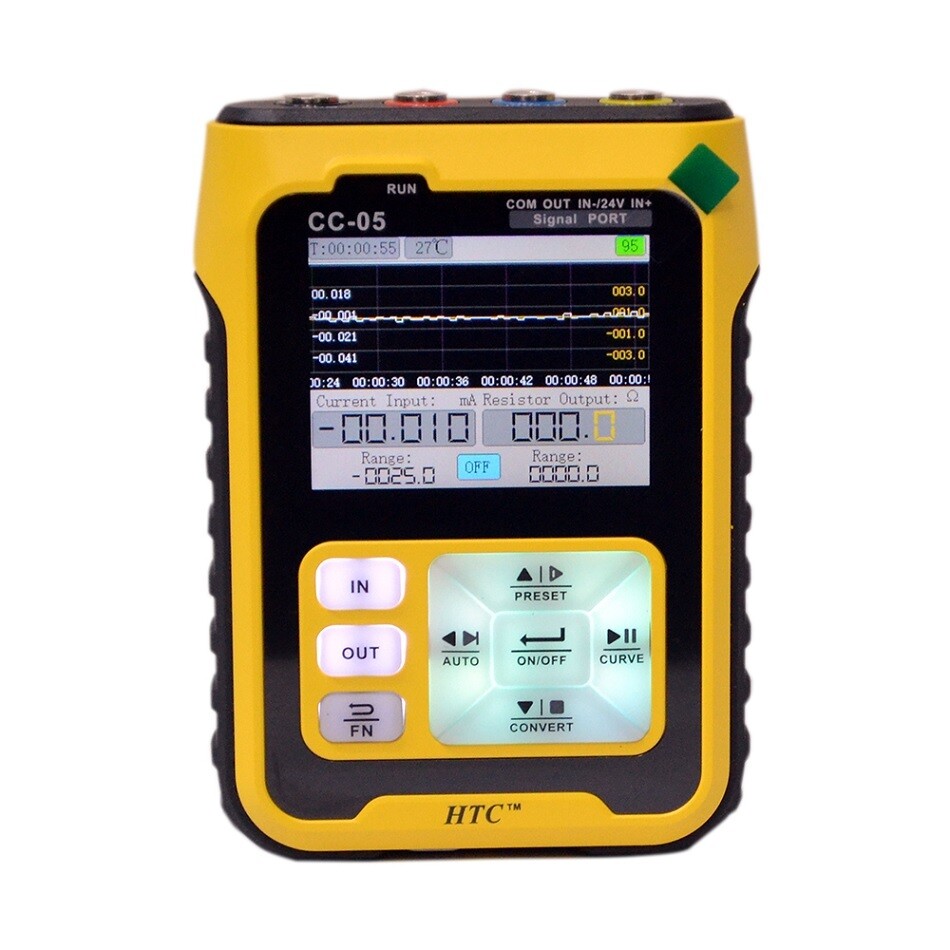

HTC CC-05 Multi Functional Process Calibrator 4-20mA TC RTD Source Measure

HTC CC-05 Multifunction Calibrator

Name: HTC CC-05 Multi-Functional Process Calibrator | mA mV TC RTD Source & Measure
Brand: HTC Instruments
SKU: HTC-CC-05
Price: 12980.0 INR
Availability: InStock

Home/Home/Calibrator

Product Details

Brand: HTC Instruments

MPN: CC-05

HTC CC-05 Multi-Functional Process Calibrator

High Accuracy Multifunction mA, mV, TC & RTD Calibrator

The HTC CC-05 Multifunction Calibrator is a professional process calibration tool designed for industrial automation, instrumentation testing, and field maintenance applications.

With ultra-high accuracy of ±0.02%, the CC-05 supports current, voltage, thermocouple, RTD, resistance, and frequency calibration in a compact portable design.

Key Features

High Accuracy ±0.02%
Source & Measure Current (0–24mA)
Source & Measure Voltage (0–24V)
Thermocouple Calibration (K, J, T, E, R, N, S, B, WRe)
RTD Support – Pt100, Cu50
Frequency Output up to 9999Hz
24V Loop Power Supply
3.7V Rechargeable Battery

Measurement & Simulation Capabilities

The HTC CC-05 supports both signal sourcing and measurement for industrial process calibration including:

0–24mA current source & measurement (4-20mA loop testing)
0–24V voltage source & measurement
mV simulation for thermocouple testing
Thermocouple calibration (K, J, T, E, R, N, B, S, WRe types)
RTD calibration – Pt100 & Cu50
Resistance simulation up to 390Ω
Frequency output up to 9999Hz
24V loop power supply for transmitter testing

Technical Specifications

Current (mA)
Range	0 ~ 24mA
Accuracy	± (0.02% + 0.003)
Resolution	0.001mA
Impedance	100Ω
Voltage (V)
Range	0 ~ 24V
Accuracy	± (0.02% + 0.003)
Resolution	0.001V
Impedance	500KΩ
mV
Range	-10 ~ 100mV
Accuracy	± (0.03% + 0.003)
Resolution	0.01mV
Frequency
Range	0 ~ 9999Hz
Accuracy	± 2%
Resistance
Range	0 ~ 390Ω
Accuracy	± (0.2% + 1)
RTD
Pt100	-200 ~ 650°C
Cu50	-20 ~ 150°C
Thermocouple Types
Supported	K, J, T, E, R, N, B, S, WRe3/25, WRe3/26
General
Loop Power	24V
Power Supply	3.7V Rechargeable Battery
Base Accuracy	Up to ±0.02%

Applications

4-20mA Loop Testing
Temperature Transmitter Calibration
Pressure Transmitter Testing
PLC & DCS Input Simulation
Industrial Field Calibration

Why Buy from IndiaMeters?

We supply genuine HTC calibration instruments with GST billing, pan-India shipping, and technical support.

Order HTC CC-05 Process Calibrator Today
