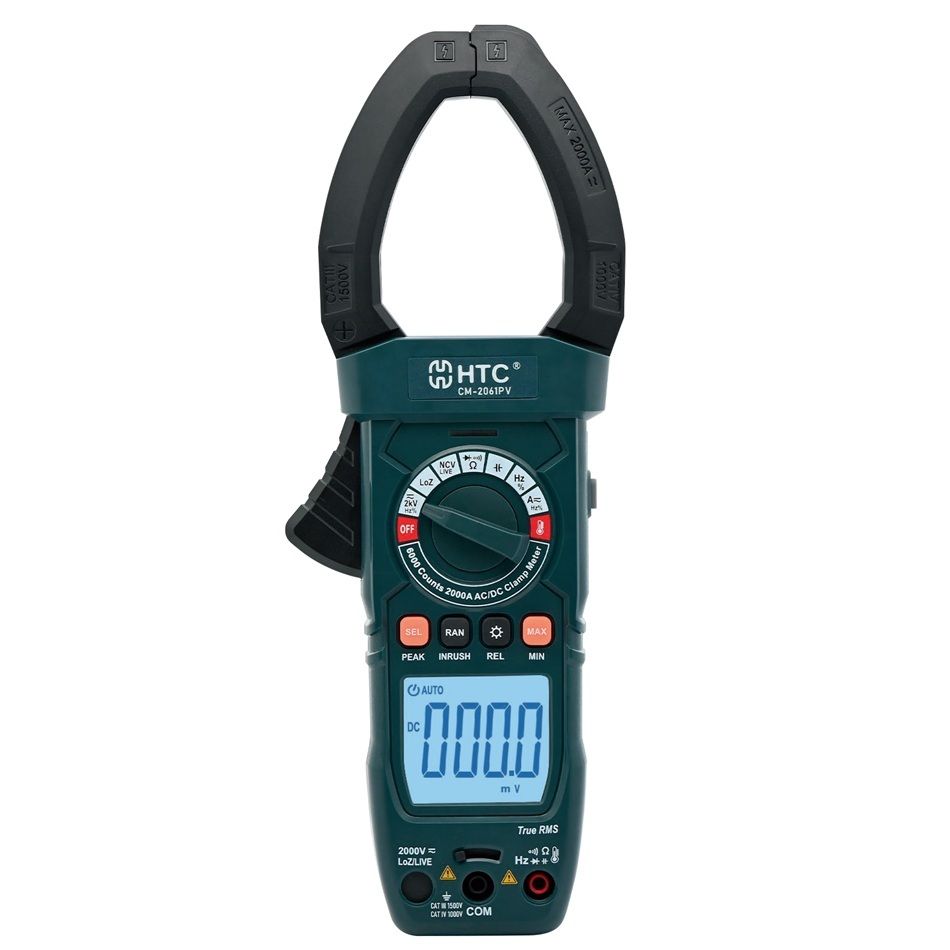

HTC CM-2061PV Solar Clamp Meter

Name: HTC CM-2061PV 2000A TRMS Solar PV Clamp Meter
SKU: HTC-CM-2061PV
Price: 7800.0 INR
Availability: InStock

Home/Home/Digital Clampmeter

Product Details

HTC CM-2061PV 2000A TRMS Solar PV Clamp Meter with AC/DC Current, Voltage, Temperature

Professional True RMS Solar Clamp Meter designed specifically for solar panel installation and maintenance in India. Safely measures high DC current from PV strings and AC current from inverters up to 2000A, making it the perfect solar tester for engineers and technicians.

Key Features of this Solar PV Clamp Meter

2000A AC/DC Current Measurement - Perfect for high-capacity solar systems
True RMS Technology - Accurate measurements on non-linear loads
Solar PV Specific - Includes MC4 PV connectors for direct solar panel testing
Inrush Current Measurement - Capture motor starting currents
Temperature Measurement - K-Type thermocouple for °C/°F readings
Live Wire Detection & NCV - Enhanced safety features
Large 67mm Jaw - Fits thick solar cables and bus bars
IP54 Rated - Dust and water splash resistant for outdoor use

Technical Specifications

AC/DC Voltage Measurement (2000V Range)

Range	Resolution	DC Accuracy	AC Accuracy
600V	0.1V	±(0.5%+5)	±(1.0%+5)
2000V	1V	±(1.0%+8)	±(1.0%+8)

AC/DC Current Measurement (2000A Range)

Range	Resolution	DC Accuracy	AC Accuracy
600A	0.1A	±(2.0%+5)	±(2.0%+5)
2000A	1A	±(2.0%+5)	±(2.0%+5)

Inrush Current Measurement

Function	Range	Resolution	Accuracy
Inrush Current ACA	2000A	1A	±(10%+10)

Perfect for Solar Applications

This PV clamp meter is specifically designed for solar energy professionals in India. It can measure:

DC String Current from solar panels
AC Output Current from inverters
PV System Voltage up to 2000V DC
Temperature of components and environment
Inrush Current during system startup

What's Included in the Package

HTC CM-2061PV Clamp Meter
Test Leads
K-Type Thermocouple
MC4 PV Plug (Solar Specific)
Test Probe & Crocodile Clips
Hard Carrying Case
User Manual
Battery

Who Should Buy This Clamp Meter?

Ideal for solar installers, electrical contractors, maintenance engineers, and industrial technicians across India including Delhi, Mumbai, Bangalore, Chennai, Hyderabad, and Kolkata.
