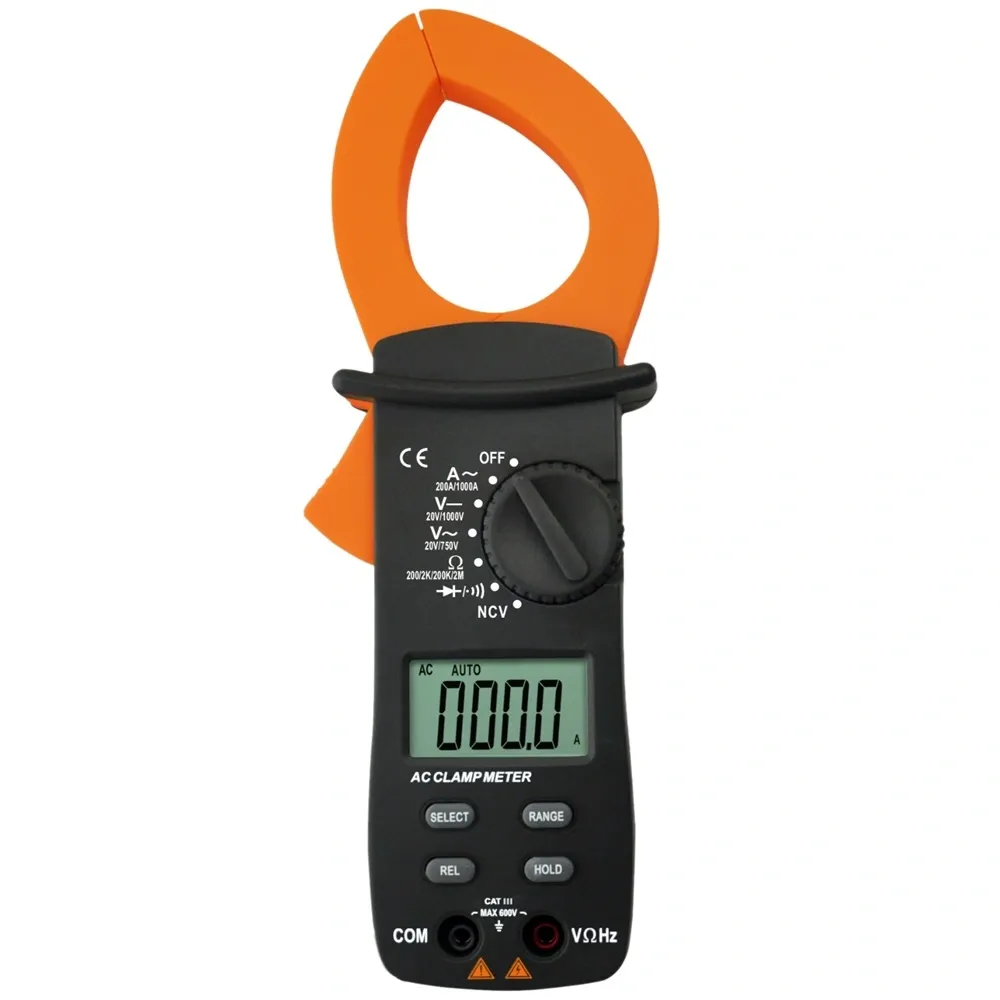

HTC CM-207FCT 1000A True RMS Digital Clamp Meter

HTC CM-207FCT is a high-performance 1000A True RMS Digital Clamp Meter engineered for accurate measurement of AC current, AC/DC voltage, resistance, frequency, temperature, capacitance, and more. With a rugged design and a wide jaw opening of 40mm, it is perfect for industrial and electrical professionals.

🔧 Key Features:

True RMS Measurement for accurate readings
AC Current Range: 200A / 1000A
Voltage Measurement: DC up to 1000V | AC up to 750V
Resistance: Up to 20MΩ
Capacitance: Up to 20μF
Temperature: -40°C to 1000°C (-40°F to 1832°F)
Frequency: Up to 1MHz
Jaw Opening: 40mm
NCV (Non-Contact Voltage Detection)
Auto/Manual Ranging & Auto Power Off
Data Hold, REL Test, Low Battery Indicator

📦 Package Includes:

HTC CM-207FCT Clamp Meter
Test Leads
TP01 Temperature Probe
User Manual
Carry Bag, White Box, 2 x AAA Batteries

📐 Technical Specifications:

Function	Range	Accuracy
AC Current	200A / 1000A	±(3.0% + 5)
DC Voltage	200mV – 1000V	±(0.5% + 5)
AC Voltage	2V – 750V	±(1.0% + 5)
Resistance	200Ω – 20MΩ	±(0.8% + 3)
Capacitance	2nF – 20μF	±(3.5% + 10)
Frequency	100Hz – 1MHz	±(0.5% + 5)
Temperature	-40°C to 1000°C	±(1.0% + 5)

📝 Additional Details:

Display Count: 1999
Display: 3½ Digit Large LCD
Sampling Rate: 3 times/sec
Power: 2 x AAA (3V) Batteries
Auto Power Off: After 15 minutes
Input Impedance: 10Ω
Weight: Approx. 200g including battery
Dimensions: 225mm x 55mm x 32mm

🚚 Buy Now from IndiaMeters.in

Get fast delivery and expert support when you purchase the HTC CM-207FCT Clamp Meter online from IndiaMeters.in. Trusted by professionals across India.
