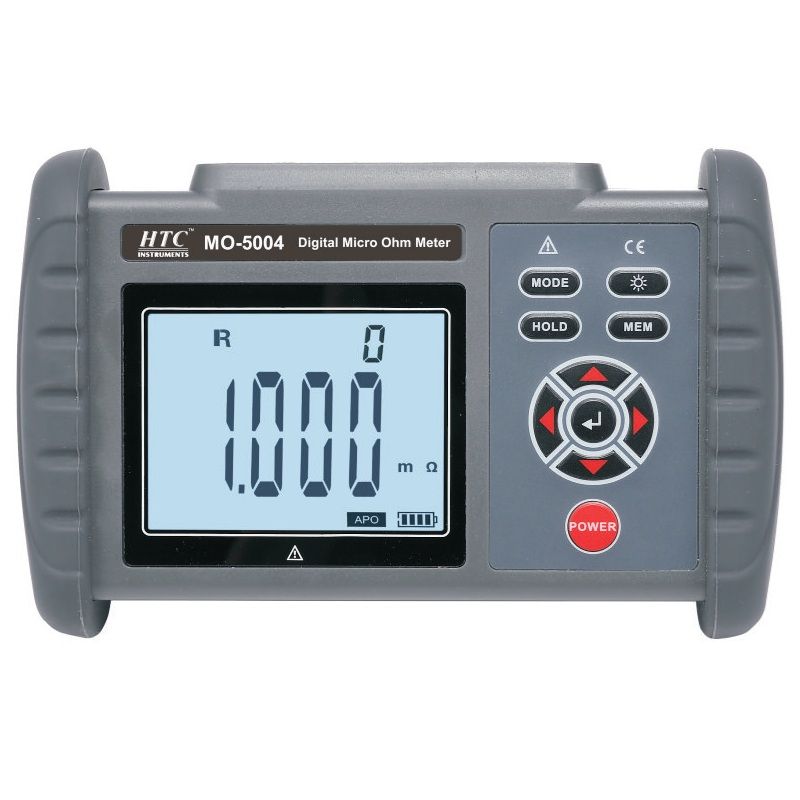

HTC MO-5004 Digital Micro Ohm / Milli Ohm Meter

HTC MO-5004 is a high-precision digital micro ohm meter designed for accurate low resistance measurement using 4-wire Kelvin method. It is ideal for testing conductor resistance, contact resistance, solder joints, busbars and electrical components.

Key Features

• Large LCD Display for easy reading
• 4-Wire Kelvin Measurement
• Measurement Range: 10µΩ to 30kΩ
• Maximum Test Current up to 1.2A
• 500 Group Data Storage
• Auto Power Off (APO)
• IEC 61010-1, CAT III Safety Standard
• Strong Anti-Magnetic & Anti-Jamming Performance
• Manual Range Selection

Measurement Range & Resolution

Technical Specifications

• Accuracy: ±0.1% FS ±20 digits
• Sampling Rate: 2 times/sec
• Maximum Display: 1999
• LCD Size: 75 x 52 mm
• Power Source: DC 3.7V 2000mAh Battery
• Low Battery Indication
• Dimension: 187 x 119 x 50 mm

Applications

• Contact Resistance Testing
• Busbar Resistance Measurement
• Electrical Panel Maintenance
• Ground Bond Testing
• Conductor & Cable Resistance Measurement
• Transformer Contact Testing

Standard Accessories

• Kelvin Test Lead (Red 3M, Black 2M)
• Charger
• User Manual

Buy Digital Micro Ohm Meter in India

If you are looking for a reliable low resistance meter for precise micro-ohm and milliohm measurement, HTC MO-5004 is a powerful and compact solution.
