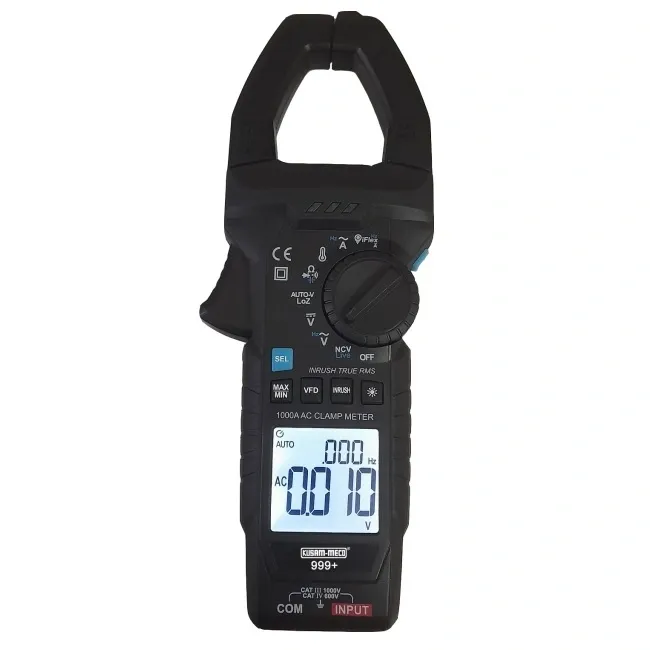

Name: Kusam-MECO 999A+ 1000A AC Digital Clamp Meter with Inrush Current & NCV Detection
Brand: Kusam Meco
SKU: KM-999A+
Price: 5400.0 INR
Availability: InStock

Kusam Meco 999A Plus 1000A Digital Clamp Meter

Product Details

Brand: Kusam Meco

MPN: KM-999A+

Professional 1000A AC Digital Clamp Meter with Inrush Current Detection

Accurately measure high currents up to 1000A with the professional-grade Kusam-MECO 999A+ Digital Clamp Meter. Designed for electricians, industrial technicians, and maintenance professionals, this advanced clamp meter combines precision measurement with robust safety features including CAT IV 600V / CAT III 1000V protection.

🚀 Key Features & Benefits

1000A AC Current Measurement - Handle high-current applications with precision
Inrush Current Measurement - Capture motor starting currents accurately
Non-Contact Voltage Detection - Safely identify live wires without contact
Autoranging Function - Automatic range selection for ease of use
VFD Function - Measure Variable Frequency Drive outputs
Data Hold & MAX/MIN Recording - Capture fluctuating readings
Diode Test & Continuity Buzzer - Complete electrical testing capabilities
CAT IV 600V / CAT III 1000V Safety Rating - Maximum protection for industrial environments
Large 42mm Jaw Opening - Fits thick cables and bus bars
Auto Power Off & Low Battery Indication - Enhanced battery management

📊 Complete Technical Specifications

Function	Ranges	Accuracy
DC Voltage Input: 10MΩ Max: 1000V DC	600 mV	±(0.5% rdg + 3 dgis)
	6 V	±(0.8% rdg + 5 dgis)
	60 V	±(0.5% rdg + 3 dgis)
	600 V	±(0.8% rdg + 3 dgis)
	1000 V	±(0.8% rdg + 5 dgis)
Auto-V LoZ DC Voltage Input: 1MΩ Max: 1000V DC	1000 V	±(1.0% rdg + 5 dgis)
AC Voltage Input: 10MΩ Freq: 40Hz-1kHz	6 V	±(1.0% rdg + 5 dgis)
	60 V	±(1.0% rdg + 5 dgis)
	600 V	±(1.2% rdg + 5 dgis)
	1000 V	±(1.2% rdg + 5 dgis)
AC Current Max: 1000A AC Freq: 40Hz-400Hz	60A	±(2.0% rdg + 5 dgis)
	600A	±(2.5% rdg + 5 dgis)
	1000A	±(2.5% rdg + 5 dgis)
Resistance	600 Ω	±(1.0% rdg + 5 dgis)
	6 kΩ	±(1.0% rdg + 5 dgis)
	60 kΩ	±(1.0% rdg + 5 dgis)
	600 kΩ	±(1.0% rdg + 5 dgis)
	6 MΩ	±(1.5% rdg + 5 dgis)
	60 MΩ	±(2.0% rdg + 5 dgis)
Diode Test Overload Protection: 1000V	0.15V - 2.5V Fwd Current: 1mA OC Voltage: 4V	Displays approximate forward voltage drop

🔧 General Specifications

Parameter	Specification
Display	4 digit 6000 Counts LCD display
Jaw Opening	42 mm Maximum
Power Supply	1.5V AAA x 3 batteries
Dimensions	250(L) x 85(W) x 45(H) mm
Weight	368 gm (including battery)
Safety Standards	IEC-61010 \| CAT III 1000V \| CAT IV 600V
Auto Power Off	After 10 minutes of inactivity

🎯 Professional Applications

Industrial Electricians - Motor current measurement, load testing
HVAC Technicians - Compressor inrush current measurement
Maintenance Engineers - Preventive maintenance, troubleshooting
Factory Maintenance - Machine current monitoring, power quality checks
Electrical Contractors - Installation verification, load balancing

📦 Package Contents

Kusam-MECO 999A+ Digital Clamp Meter
Test Leads (Pair)
User Manual
Battery (1.5V AAA x 3)
Thermocouple
Carrying Case

⚠️ Safety Certification

This instrument complies with IEC-61010 safety standards and is rated for CAT III 1000V / CAT IV 600V environments. Always follow proper electrical safety procedures when working with high voltage systems.

Why Choose Kusam-MECO? With over four decades of experience, Kusam-MECO is a trusted Indian brand known for reliable, accurate, and safe electrical testing instruments. Our ISO 9001:2015 certification ensures consistent quality across all products.
