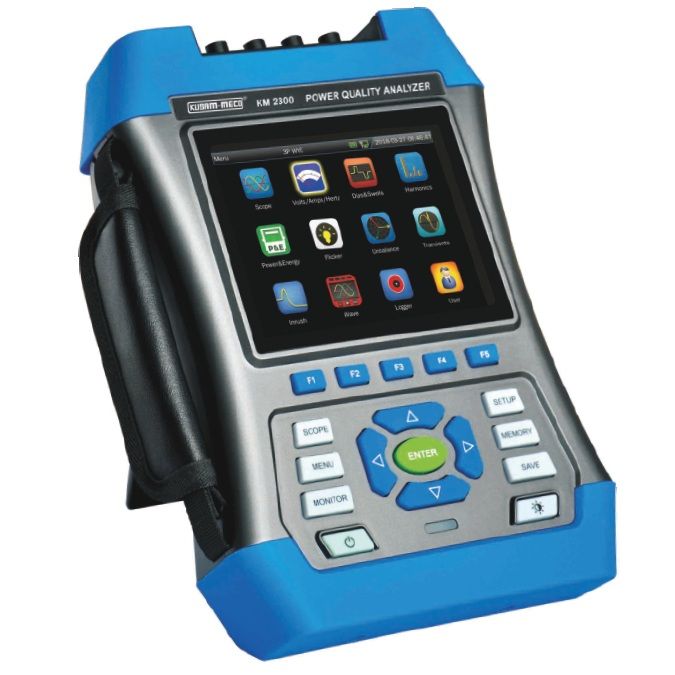

Kusam Meco KM-2300 Class A Power Quality Analyzer - Professional
SKU KM-2300-PA
₹384,882
On Sale
Price includes GST (18%) ₹58,710.81
In stock
1
Save this product for later
Kusam Meco KM-2300 Class A Power Quality Analyzer - Professional
Product Details
Kusam Meco KM-2300 Class A Power Quality Analyzer - Professional 3-Phase Harmonics Analyzer for Energy Audits
Why Choose KM-2300 Power Analyzer?
- Class A Certified - IEC 61000-4-30 compliant for accurate power quality measurements
- 100th Harmonic Analysis - Advanced harmonic measurement up to 100 times for comprehensive power quality assessment
- Energy Audit Ready - EN50160 compliant with user-defined limits for industrial energy audits
- Real-time Waveform Display - Monitor 4 voltages and 4 currents simultaneously
- Versatile Current Measurement - Compatible with AC/DC current transformers (5A to 6000A) and Rogowski coils
- Built-in 32GB Memory - Extended data logging with WiFi and LAN connectivity
Professional Power Quality Analyzer for Industrial Applications
The KM-2300 Multifunction Power & Harmonics Analyzer is a Class A certified instrument designed for comprehensive power quality analysis, energy audits, and electrical system monitoring. Manufactured by Kusam-Meco, an ISO 9001:2015 certified company, this advanced three-phase power analyzer delivers precise measurements critical for industrial energy management and power quality troubleshooting.
Perfect for electrical engineers, energy auditors, and maintenance professionals, the KM-2300 measures voltage, current, power, harmonics, flicker, and transients with exceptional accuracy. With its intuitive 5.6" TFT LCD display and half-cycle RMS measurement capability, this power quality analyzer ensures you capture every critical power event.
Technical Specifications - KM-2300 Power Analyzer
Power Quality Measurements
| Compliance Standards | IEC 61000-4-30 Class A, EN50160, IEC 61000-4-7, IEC 61000-4-15 |
| Harmonic Analysis | Up to 100th harmonic (50/60Hz), Interharmonics 0-99 |
| Voltage Range | 1-1000Vrms, Max continuous 1000Vrms (CAT III 1000V, CAT IV 600V) |
| Current Range | 10mA to 6000A (with optional clamps) |
| Frequency | 50Hz (42.5-57.5Hz), 60Hz (51-69Hz), 400Hz (320-480Hz) |
| Display | 5.6" TFT LCD, 640×480 resolution, adjustable brightness |
| Memory | 32GB built-in memory card |
| Connectivity | WiFi, LAN, USB Host interface |
Power & Energy Measurements
- Active Power (kW), Reactive Power (kvar), Apparent Power (kVA)
- Energy measurement (kWh, kVAh, kvarh) ±1% accuracy
- Power Factor (True PF and Displacement PF)
- Three-phase unbalance (voltage and current)
- Inrush current detection
- Flicker measurement (Pst, Plt) per IEC 61000-4-15
Power Quality Event Detection
- Dips & Swells - Capture up to 1000 events with time, duration, and magnitude
- Voltage Transients - ±6000Vpk capture capability
- Interruptions - Detect according to EN50160 or custom limits
- Rapid Voltage Changes - Real-time monitoring and logging
- Half-cycle RMS - Fast voltage and current measurement
Applications for KM-2300 Power Quality Analyzer
Energy Audits
Conduct comprehensive energy audits in industrial facilities to identify energy wastage, optimize power consumption, and reduce electricity costs.
Power Quality Surveys
Perform detailed power quality assessments to identify harmonics, voltage variations, and power factor issues affecting equipment performance.
Load Studies
Analyze electrical load profiles, demand patterns, and energy consumption trends for capacity planning and load balancing.
Compliance Testing
Verify compliance with EN50160, IEEE 519, and other international power quality standards for industrial and commercial installations.
Harmonic Analysis
Detect and measure harmonic distortion from VFDs, UPS systems, LED lighting, and other non-linear loads.
Troubleshooting
Diagnose electrical system problems including nuisance tripping, equipment failures, and unexplained power issues.
Optional Current Clamps & Accessories
Expand your measurement capabilities with compatible current sensors:
AC Current Transformers
- KLC8C-5A - 5A AC current clamp, 10mV/A, ±0.2% accuracy
- CTC0080-50A - 50A AC current clamp, 10mV/A, ±0.2% accuracy
- CTC0130-100A - 100A AC current clamp, 1mV/A, ±0.2% accuracy
- CTC1535-1000A - 1000A AC current clamp, 1mV/A, ±1.0% accuracy
AC Rogowski Coils (Flexible Sensors)
- SY-1500A - 1500A flexible Rogowski coil
- PY-3000A - 3000A flexible Rogowski coil
- SY-6000A - 6000A flexible Rogowski coil
AC/DC Current Transformer
- ETCR035AD - 1000A AC/DC current transformer for DC component measurement
Package Contents
- KM-2300 Power Quality Analyzer (Main Unit)
- Voltage Test Leads × 5
- Alligator Clips × 5
- Power Adapter (AC 100-240V)
- Power Cord
- Hang Strap
- Software CD with User Manual
- Rugged Carrying Case
- Rechargeable Lithium Battery (7.4V 5200mAh, >8 hours runtime)
PC Software & Data Management
- Remote Control - Operate analyzer via LAN interface from PC
- Real-time Data - View measurements remotely in real-time
- Data Download - Download logged data for analysis
- Report Generation - Create professional power quality reports
- Waveform Replay - Review captured waveforms and events
- WiFi Support - Wireless data transfer and monitoring
Supported Wiring Configurations
The KM-2300 supports multiple wiring systems for flexible deployment:
- Single Phase with Neutral (1P+N)
- Split Phase (1P Split)
- Single Phase IT System (No Neutral)
- 3-Phase Wye (3P WYE) - 4-wire
- 3-Phase Delta (3P DELTA) - 3-wire
- 3-Phase IT System
- 3-Phase High Leg Delta
- 3-Phase Open Leg Delta (2-element)
Why Class A Certification Matters
Class A power quality analyzers are certified according to IEC 61000-4-30, the international standard for power quality measurement. This certification ensures:
- Legal Admissibility - Results can be used in contractual disputes and compliance verification
- Reproducible Results - Measurements can be compared across different instruments and manufacturers
- Highest Accuracy - Stringent accuracy requirements for voltage, frequency, harmonics, and flicker
- Industry Trust - Recognized by utilities, regulatory bodies, and international standards organizations
- Professional Credibility - Essential for certified energy auditors and power quality consultants
About Kusam-Meco
Kusam-Meco is a leading Indian manufacturer of electrical and electronic test & measuring instruments with ISO 9001:2015 certification. With decades of experience, Kusam-Meco provides reliable, accurate instruments trusted by engineers and technicians across India and globally.
Frequently Asked Questions
What is a Class A power quality analyzer?
A Class A power quality analyzer is certified to IEC 61000-4-30 standard, ensuring the highest accuracy and reliability for power quality measurements. Class A instruments provide legally admissible results for contractual and compliance purposes.
Can KM-2300 be used for energy audits?
Yes, the KM-2300 is specifically designed for energy audits. It measures power, energy consumption (kWh), power factor, load profiles, and identifies energy wastage areas, making it ideal for industrial energy audit compliance per ISO 50001 and BEE requirements.
What harmonic analysis capabilities does KM-2300 offer?
The KM-2300 can measure harmonics up to the 100th order for 50/60Hz systems, along with interharmonics (0-99 order). It measures THD, individual harmonic voltage and current, harmonic phase angles, and absolute harmonic values per IEC 61000-4-7 standard.
What current range can the KM-2300 measure?
With optional current clamps and Rogowski coils, the KM-2300 can measure currents from 10mA up to 6000A. It supports various current sensors including AC transformers (5A to 1000A) and flexible Rogowski coils (1500A to 6000A).
Is the KM-2300 suitable for three-phase systems?
Yes, the KM-2300 supports multiple three-phase configurations including 3-phase Wye (4-wire), 3-phase Delta (3-wire), and various other wiring systems. It measures three-phase unbalance, phase angles, and provides complete power analysis for industrial three-phase installations.
