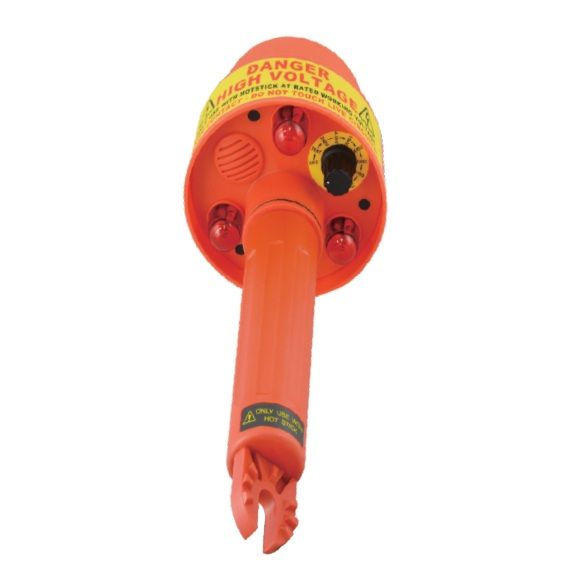

Kusam Meco KM 278HP-800KV Non-Contact High Voltage Detector

The Kusam Meco KM 278HP-800KV is a professional non-contact high voltage detector designed for safe and reliable detection of live voltages in high-tension electrical systems. With a detection range extending up to 800kV, it is ideal for substations, overhead transmission lines, switchyards and industrial power installations.

Key Features

• Non-contact high voltage detection up to 800kV

• 10 Voltage Settings : 240V, 3.3kV, 11kV, 22kV, 33kV , 66kV, 110kV, 220kV, 440kV and 800kV
• Clearly visible LED indication for live voltage presence
• High voltage proximity sensing for enhanced operator safety
• Rugged industrial housing suitable for field use
• Designed for indoor and outdoor electrical applications
• Trusted Kusam Meco build quality

Typical Applications

• High voltage substations and switchyards
• Overhead HT and EHT transmission lines
• Electrical safety checks before maintenance
• Utility, power generation and distribution companies
• Industrial electrical installations

Why Choose KM 278HP-800KV High Voltage Detector?

Unlike conventional contact-based testers, the KM 278HP-800KV allows safe non-contact voltage detection, reducing risk to personnel. Its wide detection capability up to 800kV makes it suitable for modern high-voltage power networks where safety and speed are critical.

Technical Highlights

• Detection Type: Non-contact proximity detection
• Maximum Voltage Range: Up to 800kV
• Indication: High-intensity LED visual alert
• Application: High voltage electrical systems

Accessories

• Disconnect hook
• Fuse extractor head
• User instruction manual
• Protective carrying case

The supplied disconnect hook and fuse extractor head enable safe operation while working on live or high-voltage electrical systems, making the KM 278HP-800KV suitable for substation and HT line maintenance tasks.

Optional Accessories

• HSR 122-5M – Round Tube Telescopic Hot Stick (Extended Length: 5 meters)
• HSR-121 – Round Tube Telescopic Hot Stick (Extended Length: 3 meters)

These telescopic hot sticks are designed for use with high voltage detectors to maintain a safe working distance during inspection and maintenance of HT and EHT electrical systems. Selection of hot stick length depends on site safety requirements and voltage levels.

FAQs – High Voltage Detector

What is a non-contact high voltage detector?

A non-contact high voltage detector senses the presence of live voltage without physically touching the conductor, improving operator safety during inspection and maintenance.

Is the KM 278HP suitable for substations?

Yes, the Kusam Meco KM 278HP-800KV is specifically designed for use in substations, HT yards and transmission environments.

What is the maximum voltage it can detect?

This model supports detection of high voltage systems up to 800kV.

Is this detector suitable for outdoor use?

Yes, it features a rugged construction suitable for both indoor and outdoor electrical safety applications.

What accessories are supplied with the Kusam Meco KM 278HP-800KV?

The Kusam Meco KM 278HP-800KV is supplied with a disconnect hook, fuse extractor head, user instruction manual and a protective carrying case.

What is the use of the disconnect hook?

The disconnect hook allows safe operation while working near high-voltage equipment, helping operators maintain distance from live conductors during inspection or maintenance tasks.

Why is a fuse extractor head provided with this high voltage detector?

The fuse extractor head is used for safely handling and removing fuses in high-voltage environments, reducing the risk associated with direct contact during electrical maintenance.

Are the disconnect hook and fuse extractor head included as standard?

Yes, both the disconnect hook and fuse extractor head are supplied as standard accessories with the KM 278HP-800KV high voltage detector.

Can these accessories be used in substations and HT yards?

Yes, the supplied accessories are designed for use in substations, HT yards and other high-voltage electrical installations where safety and distance from live equipment are critical.

Which hot sticks can be used with the KM 278HP-800KV?

The KM 278HP-800KV can be used with optional round tube telescopic hot sticks such as HSR 122-5M (5 meter) and HSR-121 (3 meter), depending on application and required safety distance.

Buy Kusam Meco KM 278HP-800KV High Voltage Detector from IndiaMeters.in with assured authenticity, technical support and fast delivery across India.
