Kusam Make KM-4002 + KM-CCT3K Clamp Meter Bundle

The Kusam Make KM-4002 + KM-CCT3K bundle combines a 1000A AC/DC True RMS clamp meter with a 3000A flexible Rogowski coil current clamp, delivering a powerful, reliable, and cost-effective solution for industrial electrical measurements.

This bundle is commonly selected by professionals looking for a cost-effective alternative to the :contentReference[oaicite:0]{index=0} for high-current applications such as busbars, inverters, VFD systems, and substations.

What’s Included in This Bundle

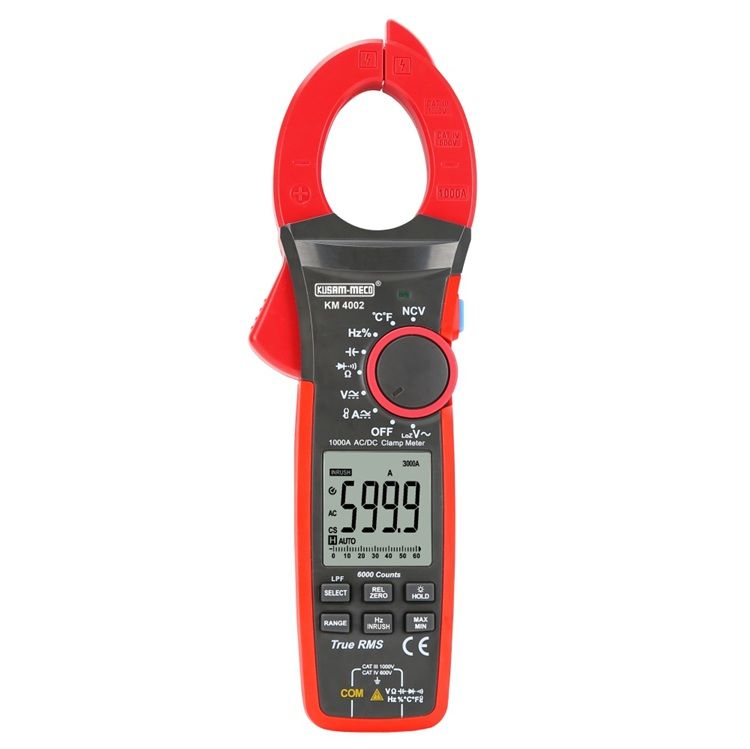

• KM-4002 AC/DC True RMS Clamp Meter (1000A)
• KM-CCT3K Flexible Current Clamp (Up to 3000A AC)
• Test leads, batteries, temperature probe, BNC adapter & manuals

Key Features – KM-4002 Clamp Meter

• AC/DC current measurement up to 1000A (True RMS)
• Inrush current capture for motors and transformers
• LoZ mode to eliminate ghost voltage
• LPF ACV for accurate inverter & VFD voltage measurement
• CAT III 1000V / CAT IV 600V safety rating
• 6000-count display with analog bar graph
• NCV with audio & visual alarm
• 42mm jaw opening
• Temperature measurement from −40°C to 1000°C

Key Features – KM-CCT3K Flexible Current Clamp

• AC current ranges: 30A / 300A / 3000A
• Rogowski coil sensor for safe high-current measurement
• Ideal for busbars and large conductors in tight spaces
• Flexible loop size: 45.7 cm (18 inches)
• CAT IV 600V safety rating
• Lightweight and easy to use

Comparison: KM-4002 + KM-CCT3K vs Fluke 376 FC

Frequently Asked Questions (FAQs)

What current range does the KM-4002 + KM-CCT3K bundle support?

The KM-4002 measures AC/DC current up to 1000A using the clamp jaw. With the KM-CCT3K flexible clamp, AC current measurement can be extended up to 3000A.

Is this bundle suitable as an alternative to Fluke 376 FC?

Yes. For many industrial and electrical maintenance applications, this bundle offers comparable functionality and measurement capability at a significantly more cost-effective price point.

Can this bundle be used for busbar and large conductor measurements?

Yes. The KM-CCT3K Rogowski coil flexible clamp is specifically designed for high-current measurement on busbars and large conductors in tight spaces.

Is this clamp meter suitable for inverter and VFD applications?

Yes. The KM-4002 includes LPF ACV and LoZ modes, making it suitable for inverter and VFD voltage measurements.

Does the KM-4002 support inrush current measurement?

Yes. The clamp meter features inrush current capture, useful for testing motors, transformers, and inductive loads.

Trademark Disclaimer:
Fluke® is a registered trademark of Fluke Corporation. Kusam Make KM-4002 and KM-CCT3K are independent products and are not affiliated with or endorsed by Fluke.
