Kusam Meco KM-50K High Voltage Phasing Stick (50kV AC/DC)
Product Details

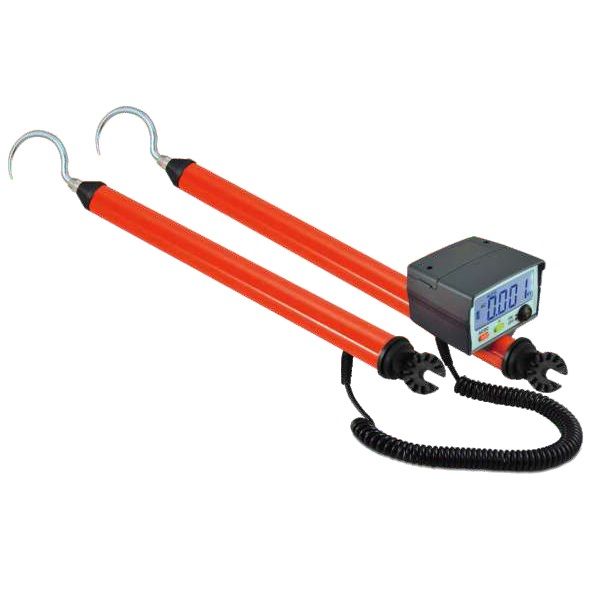

Kusam Meco KM-50K High Voltage Multifunction Phasing Stick (50kV) with display
The Kusam Meco KM-50K is a digital high voltage multifunction phasing stick designed for accurate phase comparison, voltage measurement, and polarity indication in high voltage power systems. It is widely used in substations, transmission lines, and overhead distribution networks.
Key Features of KM-50K High Voltage Phasing Stick
- AC & DC voltage measurement up to 50kV with direct digital reading
- Functions as a high voltage phase comparator (in-phase / out-of-phase detection)
- 4000-count LCD with backlight for clear visibility
- High input impedance of 400 MΩ for safe and accurate measurement
- Auto-ranging for AC & DC voltage measurements
- Positive / Negative polarity indication
- IP66 rated – suitable for harsh outdoor environments
- Auto power-off & low battery indication
Why Use a High Voltage Phase Comparator?
A high voltage phasing stick is critical before connecting or synchronizing two live high voltage conductors. The KM-50K ensures that phases are correctly matched, preventing equipment damage, flashovers, and personnel hazards.
Applications
- High voltage substations
- Overhead transmission & distribution lines
- Power generation plants
- Electrical maintenance & commissioning
- Utilities and electrical contractors
Technical Specifications
| AC Voltage Range | 4kV / 40kV / 50kV |
|---|---|
| DC Voltage Range | 4kV / 40kV / 50kV |
| Accuracy (AC) | ±2.5% |
| Accuracy (DC) | ±2.0% to ±3.0% |
| Display | 4000-count LCD with backlight |
| Power Supply | 2 × 1.5V AA Batteries |
| Ingress Protection | IP66 |
Optional Accessories – HS-175 Telescopic Triangle Fibreglass Hot Stick
The Kusam Meco KM-50K High Voltage Phasing Stick must be used with certified insulated telescopic hot sticks to ensure safe and accurate phase comparison. The HS-175 series Telescopic Triangle Fibreglass Hot Sticks are specifically designed for high voltage substations and transmission line applications.
Available HS-175 Models & Working Lengths
| Model | Extended Length |
|---|---|
| HS-175-9 | 12.09 meters |
| HS-175-8 | 10.62 meters |
| HS-175-7 | 9.18 meters |
| HS-175-6 | 7.78 meters |
| HS-175-5 | 6.42 meters |
| HS-175-4 | 5.10 meters |
Recommended Selection Guide
- 12.09 m – 10.62 m: Extra-high voltage substations & long-reach phase comparison
- 9.18 m: Standard substation and switchyard applications
- 7.78 m – 6.42 m: Utility distribution networks
- 5.10 m: Indoor panels and limited-clearance HV systems
Note: HS-175 hot sticks are supplied as optional accessories and are not included with the KM-50K phasing meter by default.
What’s Included
- KM-50K High Voltage Phasing Meter
- Master & Slave sticks
- Insulated rods
- Contact electrodes
- Carrying case
- Instruction manual
