Brand: Kusam Meco
MPN: KM-582

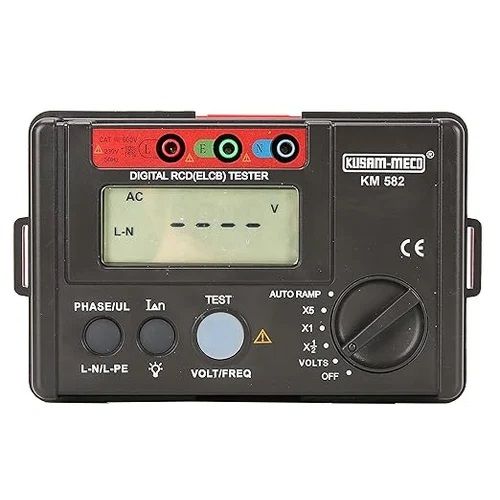

Kusam Meco KM-582 – ELCB/RCD Tester with Trip Time, Trip Current & Auto Ramp Test
The Kusam Meco KM-582 is a compact and reliable digital ELCB (RCD) tester designed to check the performance of residual current devices in single-phase circuits. It measures both trip current and trip time with high precision, ensuring electrical safety in domestic, commercial, and industrial setups.
⚙️ Key Features:
- Trip time and trip current testing
- Supports 10mA, 20mA, 30mA, 100mA, 300mA, 500mA test ranges
- Modes: X½, X1, X5, and Auto Ramp
- Phase angle selection: 0° and 180°
- Simultaneous trip time & current test
- Auto power off, data hold, and backlight display
- Buzzer for misoperation and power-off alerts
- CAT III 600V rated, fuse protected
📐 Technical Specifications:
- Trip Time Accuracy: ±(2% + 2)
- Operating Voltage: 195V–253V (Single-phase)
- Voltage Measurement Range: 30V–600V
- Frequency: 45Hz–65Hz
- Resolution: 1V | Voltage Accuracy: ±(3% + 3)
- Display: 1000 count LCD, 71mm x 34mm
- Weight: ~400g | Size: 160mm × 100mm × 71mm
- Power Supply: 6 × 1.5V AA batteries
📦 Included Accessories:
- Test leads with probe
- Elastic strap
- User manual
Compliance: IEC 61010-1, IEC 61557-6, EN61326-1, CAT III 600V
Ideal for: Electricians, safety auditors, maintenance teams, and institutions needing RCD verification tools.
