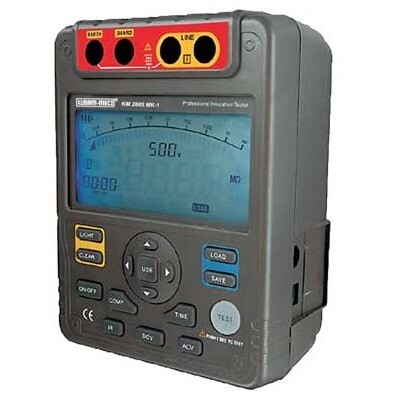

Kusam Meco KM 2805 MK-1 insulation resistance tester is a handheld instrument designed primarily to make resistance / insulation resistance measurement with PI measurements.

General Specification
• Range : Auto ranging.
• Overloading : Display OL on Insulation Resistance range
• Battery Displays Battery Condition
• Icon Display : Equips with function and battery indicator icons.:
• Current Consumption : Maximum : around 1.0A, Average : around 20mA
• Display Backlight : Bright backlight for clear readings in poorly lighted areas.
• Computer Connection : Via USB interface
• Data Logging and Recall : 18 points
• Autorange : The Meter automatically selects best range
• Warning : And red light will on.
• Voltage : Auto discharge Voltage function
• Compare Measurement : Use the compare function to set a pass/fail compare level for the insulation measurements
• PI Measurement : Polarization Index is the ratio of insulation resistance. You can pre-set two points of time and automatically carry out the measurement
• Time : To carry out measurement by setting specified time within15 Minutes
• Accessories : Two pcs of plug test lead to one alligator clip (Black & Green),
One pc of Two plugs test lead to alligator clip (Red), Batteries, User’s manual, Tool Box, USB interface cable, Software, Power Adaptor.
