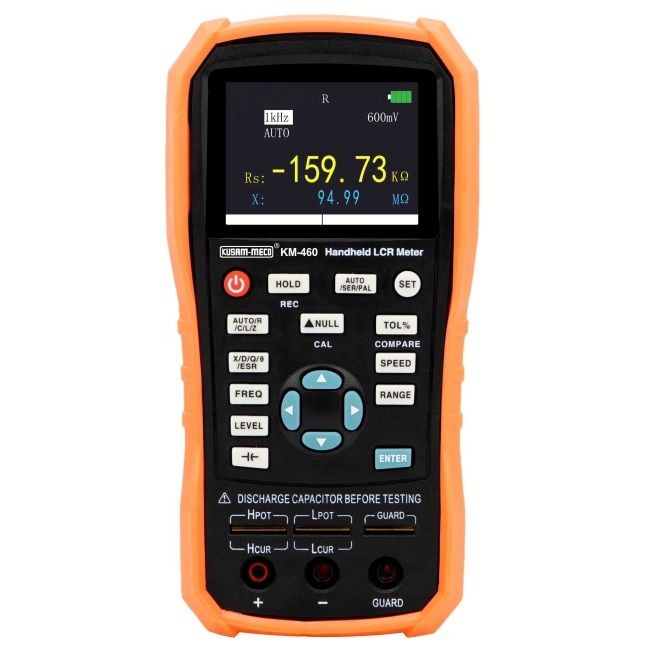

Kusam Meco KM 460 – High Precision Handheld LCR Meter with USB Interface

The Kusam Meco KM460 is a portable, handheld LCR meter designed for accurate testing of inductors (L), capacitors (C), and resistors (R). With support for frequencies up to 100kHz and a 0.3% basic accuracy, it’s ideal for R&D labs, production lines, and field testing.

🔍 Key Features:

• Measuring parameters: L / C / R / Z with auxiliary values X, D, Q, ESR
• Measurement frequency: 100Hz, 120Hz, 1kHz, 10kHz, 40kHz, 100kHz
• Display: 2.8” TFT LCD | Main: 5 digits | Auxiliary: 5 digits
• Auto/Manual ranging with speed control (slow/medium/fast)
• USB interface for data logging & PC communication
• Calibration: open/short circuit for higher accuracy
• Electrolytic capacitor mode & error comparison mode

📐 Measurement Range:

• Inductance: 0.000 µH to 2000 H
• Capacitance: 0.000 pF to 20 mF
• Resistance: 0.000 Ω to 20 MΩ
• Impedance and Phase Angle: Z and θ measured up to 100kHz

📦 Standard Accessories:

• Mini-USB cable
• Short-circuit plate
• Plug cables
• Power adapter
• Rechargeable lithium battery
• User manual & carrying case

Trusted by engineers, quality control teams, and component manufacturers across India.
