Loop Impedance Meter
Loop Impedance Meters are essential electrical test instruments used to measure earth loop impedance in electrical installations. These meters help verify that fault current can flow quickly enough to trip protective devices such as MCBs and RCCBs, ensuring electrical safety and compliance.
Our range includes digital loop impedance testers designed for fast and accurate measurement in residential, commercial and industrial installations, supporting installation testing, maintenance and safety audits.
Frequently Asked Questions About Loop Impedance Meters
What is a loop impedance meter?
A loop impedance meter is an instrument used to measure the impedance of the fault current path (earth loop) in an electrical system to ensure proper operation of protective devices.
How does a loop impedance tester work?
A loop impedance tester injects a test current into the circuit and measures the voltage drop to calculate the total impedance of the loop using Ohm’s law. ([kew-ltd.co.jp](https://www.kew-ltd.co.jp/en/support/mame/measurement/z_s/?utm_source=chatgpt.com))
What is earth loop impedance?
Earth loop impedance is the total resistance of the fault current path from the live conductor through the protective earth back to the supply source.
Why is loop impedance testing important?
Loop impedance testing ensures that sufficient fault current will flow to quickly trip protective devices, preventing electric shock and fire hazards.
What is a good loop impedance value?
A good loop impedance value is low enough to allow protective devices to trip within required time limits, as specified by electrical standards.
Where are loop impedance meters used?
Loop impedance meters are used in electrical installation testing, maintenance, inspection and safety audits in residential, commercial and industrial systems.
What is the difference between loop impedance and earth resistance?
Earth resistance measures the resistance of the grounding system, while loop impedance measures the total fault path including live, neutral and earth conductors.
How do I choose the right loop impedance meter?
Select a loop impedance meter based on measurement range, accuracy, safety rating, testing features and application such as installation testing or industrial maintenance.
Visit our offline store:
Industrial Supply Syndicate
54, Ezra Street, Kolkata – 700001
Phone: 8961089611
Email: info@indiameters.in
Explore our complete range of loop impedance meters for accurate fault loop testing and electrical safety compliance.
Refine by
On Sale

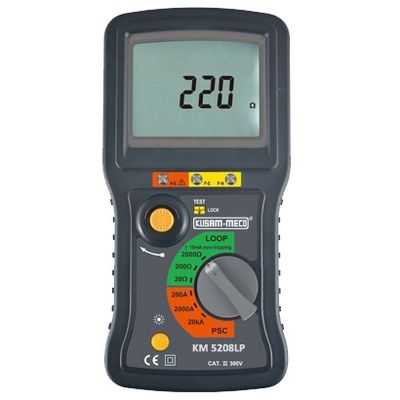

Kusam Meco KM-5208LP Loop Impedance Tester
Kusam Meco KM-5208LP Loop Impedance Tester
Save 22%
₹26,000
