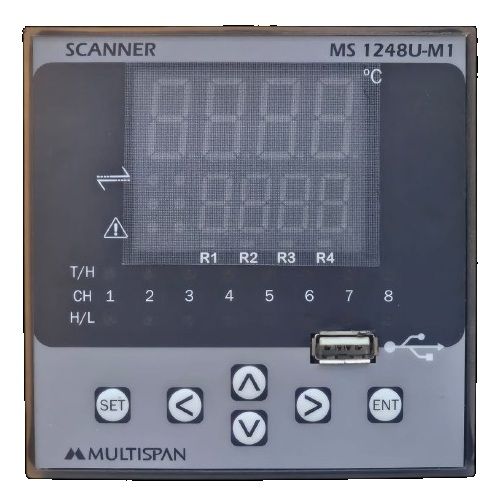

Multispan MS1248U-M1 – 8 Channel Temperature Scanner Datalogger
Product Details
Brand: Multispan
MPN: MS-1248U-M1
Multispan MS1248U-M1 – 8 Channel Temperature Scanner with Built-in Data Logger
The Multispan MS1248U-M1 is an industrial-grade 8 channel temperature scanner and data logger designed for simultaneous monitoring, control, and recording of temperature from multiple sensors. It supports Thermocouple J, K and RTD PT-100 inputs and offers built-in USB data logging with CSV export for analysis.
Why Choose MS1248U-M1 Temperature Data Logger?
- 8 independent temperature input channels
- Built-in USB data logging (CSV / Excel format)
- Supports J, K thermocouples & PT-100 RTD (2W/3W)
- Panel mounted 96×96 mm industrial enclosure
- 4 relay alarm outputs for process control
- RS-485 Modbus RTU communication
Data Logging Features
- Periodic logging with programmable interval (1 sec minimum)
- Non-volatile 2 MB internal memory
- USB 2.0 mass storage for easy data retrieval
- Logs up to 8000 samples with date & time stamp
- Alarm indication when memory usage exceeds 75%
Applications
- Multi-point temperature monitoring
- Motor and generator protection
- Electrical substation temperature logging
- Metal, mining & furnace applications
- Machine condition monitoring
- Gas detection and industrial process monitoring
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Channels | 8 Channels |
| Sensor Types | Thermocouple J, K / RTD PT-100 (2W/3W) |
| Temperature Range | J: 0–600°C, K: 0–1200°C, PT-100: −99 to 400°C |
| Accuracy | ±1% FSD (J/K), ±0.5% (PT-100) |
| Display | Multi-digit LED with channel & relay status |
| Logging Interface | USB 2.0 (CSV format) |
| Outputs | 4 × Relay Outputs (2A @ 230V AC) |
| Communication | RS-485 Modbus RTU |
| Power Supply | 100–250V AC/DC SMPS, 50/60 Hz |
| Panel Size | 96 × 96 mm |
What’s Included
- MS1248U-M1 Temperature Scanner
- Mounting clamps
- User manual
Optional Accessories
- Thermocouple & RTD sensors
