Proton PRO8-1D Alarm Annunciator
Product Details
Brand: Proton
MPN: PRO8-1D

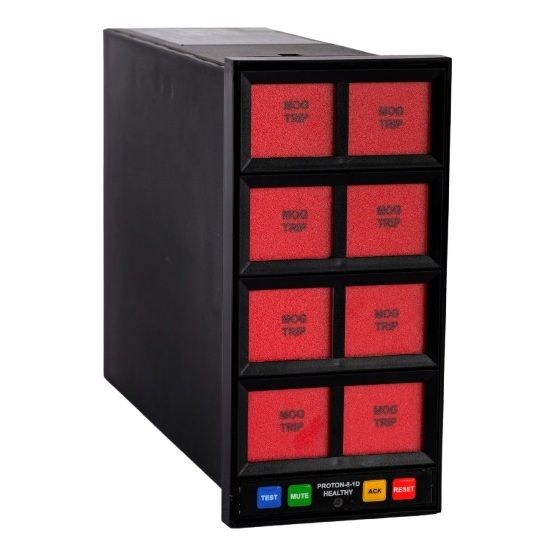

Proton PRO8-1D 8 Window Alarm Annunciator Panel
Key Features & Benefits
- 8 Independent Alarm Windows: Monitor up to 8 different fault conditions simultaneously with clear visual indicators
- Super Bright LED Technology: Long-lasting, high-intensity LEDs replace traditional filament lamps for unlimited lifespan
- Universal Power Supply: Wide operating range of 90-270V AC/DC for versatile industrial applications
- Built-In Control Buttons: Integrated feather-touch buttons for Test, Mute, Accept, and Reset operations
- Robust ABS FRP Enclosure: High-strength construction for demanding industrial environments
- Opto-Isolated Inputs: Immune to electrical noise disturbances ensuring reliable operation
- Field-Selectable Sequences: Configurable operational sequences (Manual Reset, Auto Reset, First-Up, Ring Back)
- Site-Selectable NO/NC Contacts: DIP switch configurable for different fault input types
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | PRO8-1D |
| Number of Windows | 8 Windows |
| Window Dimension | 30 mm (W) x 30 mm (H) |
| Cutout Dimension | 68 mm (W) x 138 mm (H) |
| Overall Dimension | 72 mm (W) x 144 mm (H) x 195 mm (D) |
| Input Supply | 90-270V AC/DC |
| Power Consumption | Approx. 4 VA (0.5 VA per window) |
| LED Color | Red (Standard), Yellow, Amber, White (Optional) |
| Flash Rate | 60 flashes per minute |
| Input Contacts | Potential Free, NO/NC selectable via DIP switch |
| Output Relay Contacts | 1 NO for Hooter, 1 NO for Group Faults |
| Contact Rating | 7A at 230V AC (Resistive) |
| Operating Sequences | Manual Reset, Auto Reset, First-Up, Ring Back |
| Enclosure Material | High-Strength ABS FRP |
| Operating Temperature | 0°C to +60°C |
| Humidity | Up to 95% RH |
Product Overview
The Proton PRO8-1D is a advanced 8-window alarm annunciator designed for reliable fault monitoring in industrial control panels. Built with latest microprocessor technology, this alarm annunciator provides fast response times and accurate operation for critical industrial applications.
Industrial Applications
- Thermal Power Stations and Electrical Substations
- Steel Plants, Cement and Chemical Industries
- HT Breaker Panels and Generator Protection Panels
- Process Control Plants and AC Plants
- Fire Alarm Systems and Telephone Exchanges
- Heat Treatment Plants and Manufacturing Facilities
Note: Specifications subject to change without prior notice. Contact us for custom requirements and bulk orders.
