Precision Energy Measurement for Modern Applications

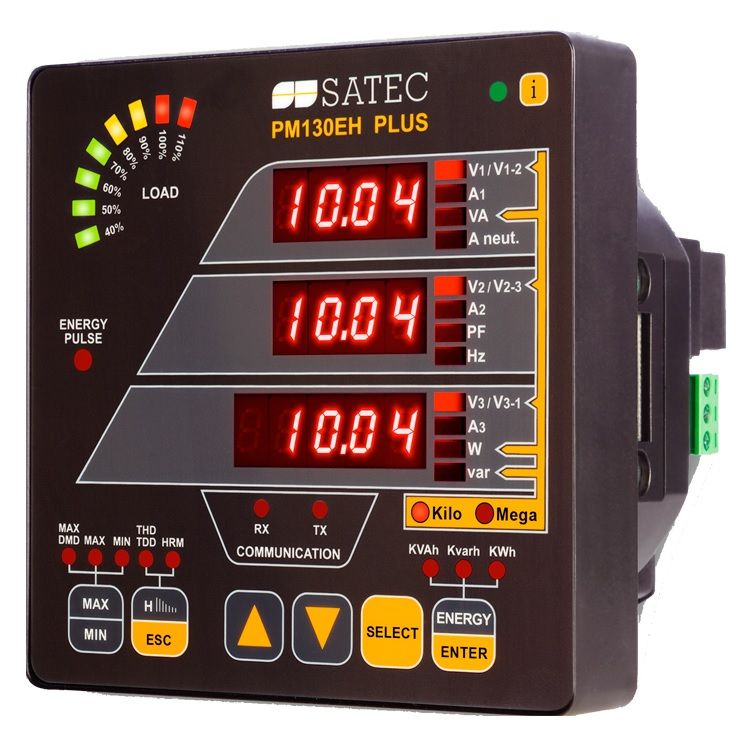

The Satec PM130EH Plus is a advanced Class 0.5S multifunction energy meter designed for precise measurement and analysis of electrical parameters in industrial, commercial, and utility applications. It offers exceptional accuracy for billing-grade sub-metering, solar system monitoring, and comprehensive energy management.

Key Features of the Satec PM130EH Plus

• High Accuracy: Meets Class 0.5S standards for precise billing and data logging.
• Comprehensive Measurements: Measures kWh, kVah, kW, kVA, volts, amps, power factor, frequency, and more.
• Advanced Communication: Built-in RS485 port with Modbus RTU protocol for seamless integration with SCADA, BMS, and PLC systems.
• Multi-Tariff Capability: Supports up to 8 tariffs for complex billing structures.
• Large, Clear Display: Easy-to-read LCD screen for on-site parameter visualization.
• DIN Rail Mountable: Standard form factor for easy installation in any electrical panel.
• Load Profiling: Records historical data for trend analysis and consumption reporting.

Technical Specifications

Typical Applications

The Satec PM130EH Plus is the ideal solution for:

• Industrial Sub-Station Monitoring: Accurate energy measurement for individual departments or processes.
• Commercial Building Management: Track energy consumption in malls, hotels, and office complexes.
• Renewable Energy Systems: Monitor solar PV generation and grid import/export.
• Data Centers: Precise power usage monitoring for critical infrastructure.
• Utility Sub-Metering: A cost-effective solution for tenant billing.
