Name: HTC DFT-821 - Best Coating Thickness Meter
Brand: HTC Instruments
SKU: HTC-DFT-
Price: 5600.0 INR
Availability: InStock

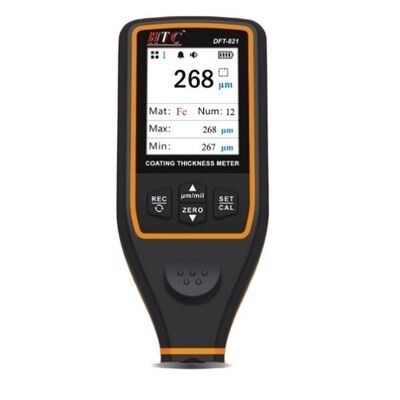

HTC DFT-821 Coating Thickness Meter for Ferrous and Non Ferrous Base Materials

Product Details

Brand: HTC Instruments

MPN: DFT-821

HTC DFT-821 Coating Thickness Meter for Ferrous and Non Ferrous Material is a perfect solution for measuring zinc coating on iron sheet after galvanising or paint coating on any metal surface.

Technical Data

Measuring range	Magnetic material 0~1700 m; Non Magnetic material 0~1700 m
Resolution	0.1 m @ (0~99.9 m); 1 m @ (100~1700 m)
Indication error	±(2+2%H) m @ (0~500 m) ±(2.5%H) m @ (500~1700 m)
Min measuring area	magnetic material 25×25mm; non magnetic material 25×25mm
Min curvature	convexity 5mm; concave 30mm
Min substrate thickness	magnetic material 0.2mm; non magnetic material 0.05mm
Screen	2 inches color screen
Memory	8 groups and each 32 sets of data
Data Export	USB port connecting PC to export
Battery specification	3.7V 850mAh lithium battery
Working temp and humidity	0ºC~50 C, 10%~80%RH
Storage temp and humidity	-10ºC~60 C, 10%~70%RH
Dimension	120x52x26mm
