Name: HTC DSO-20100S 100MHz DSO with Touch Screen
Brand: HTC Instruments
SKU: HTC-DSO-20100S
Price: 13983.05 INR
Availability: InStock

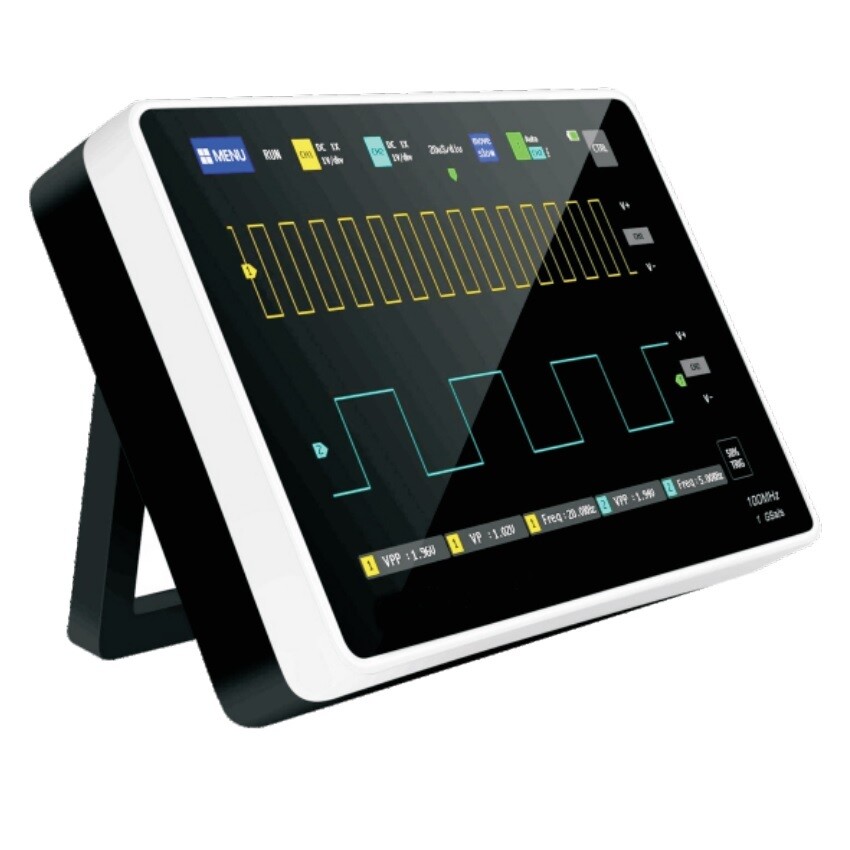

HTC DSO-20100S 100MHz Digital Storage Oscilloscope

Product Details

Brand: HTC Instruments

MPN: DSO-20100S

HTC DSO 100MHz - Digital Storage Oscilloscope with 7 Inch Touch Screen

TECHNICAL DATA

MODEL	BAND WIDTH	REAL-TIME
DSO-20100S	1X-5MHz	1GSa
DSO-20100S	10X-100MHz	1GSa

Measurement

Stored waveform	Built-in 1 Gb Storage Space
Display	7 inch – 800*480
Lissajou’s Figure	Phase Location Difference
Power Supply	1*Lithium battery , 6000mAh(Included)

Pulse with Trigger

Vertical Sensitivity	50mV/div~500V/div
Horizontal Time Base Range	50S/div ~ 10nS/div
Trigger Mode	Auto, Single, Normal
Trigger Edge	Rising Edge & Falling Edge
External Trigger Voltage	0~40V
Coupling Mode	AC/DC
Input Resistance	1Ω
Maximum Test Voltage	40V (1 X Probe), 400V (10 X Probe)

Features
• Intelligent anti-burn, 1X can withstand up to 400V withstand voltage
• 100MHz analog bandwidth @ 1GSa/s sampling rate (1X=5MHz,10X=100MHz).
• One-button waveform storage and screenshot
• Equipped with high efficiency One-button AUTO
• At any time, the waveform display (pause function) is frozen
• FFT display function, can analyze the spectral characteristics of the signal.
• Built in 6000mAh rechargeable lithium battery,fully charged for 4 hours of continuous use at the highest screen brightness.
• Screen brightness adjustment.
• Background grid brightness adjustment.
• Ultra thin, easy to carry.
