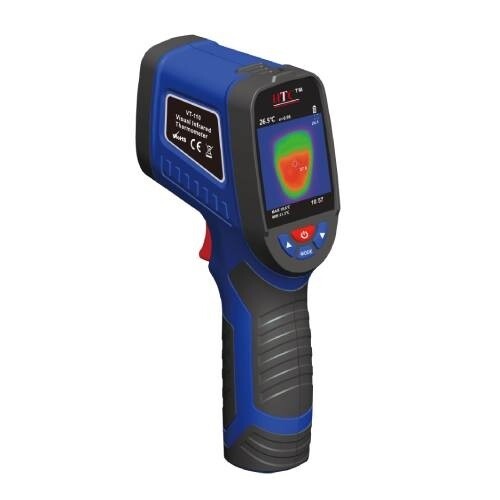

HTC VT-110 Thermal Imaging Camera
HTC-VT-110
₹18,500
In stock
1
Product Details
Brand:
HTC Instruments
MPN:
VT-110
HTC VT 110 - Low cost Thermal Imaging Camera for Electrical Panel Maintenance and HVAC application
Features
• TFT full view color screen display
• Dual MCU processors, refresh faster
• Hot and cold point temperature markers can guide users to the areas with the highest and lowest temperature in the thermal image.
• Selectable palette
• Hybrid imaging of visual and infrared images
• Images capture saved in SD card
• Connect USB with other power supply and meter, US an power supply to meter directly
Power : AA 1.5V X 4 & USB Power Supply
Specifications
| IR Resolution | 33×33 (1089 pixels) |
| Display Resolution | 240*320 pixels |
| Visual Image Resolution | 300,000 pixels |
| Field Angle | 32 X 32˚ |
| Infrared Temperature Range | -20-380˚C/-4-716˚F |
| Accuracy | >0˚C, ±2% or reading ±2˚C/3.6˚F <0˚C, ±3˚C/5.4˚F Note: Accuracy is measured in an environment of 18-28 degree |
| Dew Point Temperature Range | -30~100˚C/-22~212˚F |
| Accuracy | ±1.0˚C/1.8˚F (25˚C/77˚F,35-70%RH) |
| Wet Bulb Temperature Range | -30~100˚C/-22~212˚F |
| Accuracy | ±1.0˚C/1.8˚F (25˚C/77˚F,35-70%RH) |
| Thermal Sensitivity | 0.15˚C/0.27˚F |
| Emissivity | Adjustable 0.1-1.0 |
| Image Frequency | 9HZ |
| Wavelength Range | 8-14um |
| Focus Mode | Fixed |
| Palette | Ink colour, black and white, rainbow colour, ocean blue, iron red |
| View Options | Bleeding of the visual and the infrared from full infrared to full visual in 25% steps |
| File Format | BMP |
| Storage | 8GB Micro SD Card |
| Memory View | Scroll all saved images and view them on the screen |
| USB function | Connect USB cable with PC, meter works as U Disk, stored data in SD cared can be download to other power supply to the meter directly and meter works as usual during this time. |
| Auto Power Off | 3 minutes, 5 minutes, 10 minutes are optional |
| Working Temperature | -5~40˚C/23~104˚F |
| Storage Temperature Range | -20~55˚C/-5~131˚F |
| Relative Humidity | 10~80%RH |
Lowest cost thermal camera, low cost thermal imager, Htc thermal imaging camera, HTC VT-110
