Name: HTC TM-702 Digital Contact / Non-Contact Tachometer
Brand: HTC Instruments
SKU: HTC-TM-702
Price: 1950.0 INR
Availability: InStock

HTC TM702 Digital Contact Noncontact Tachometer

Product Details

Brand: HTC Instruments

MPN: TM-702

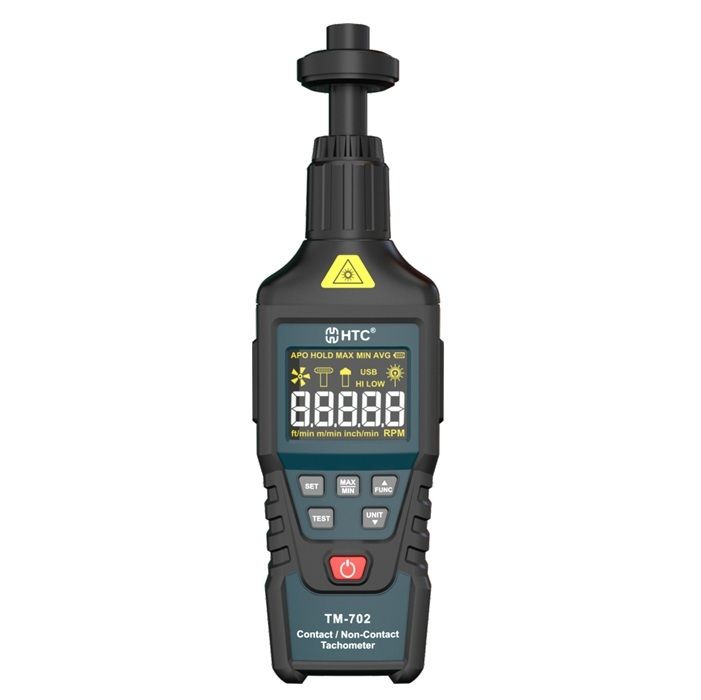

HTC TM-702 Digital Contact / Non-Contact Tachometer

The HTC TM-702 is a high-performance digital tachometer with both contact and non-contact modes. Designed for accurate speed measurement of motors, fans, pumps, and rotating equipment, it covers a wide range from 1.0 to 99,999 RPM with ±0.05% accuracy.

Key Features:

Dual mode: Contact & Non-Contact RPM measurement
Measurement range: 1.0 – 19,999 RPM (contact), 10 – 99,999 RPM (non-contact)
Accuracy: ±(0.05% + 1 digit)
Resolution: 0.1 RPM (up to 9,999.9), 1 RPM (above 10,000)
5-digit large LCD display with 40mm digits
Functions: Max, Min, Average, Last Reading
USB interface for data transfer
High/low threshold alarms
Auto power off & low battery indicator
Compact, lightweight design (140g) with accessories included

Technical Specifications:

Measuring Range (Non-Contact)	10 – 99,999 RPM
Measuring Range (Contact)	1.0 – 19,999 RPM
Resolution	0.1 RPM (up to 9,999.9), 1 RPM (above 10,000)
Accuracy	± (0.05% + 1 digit)
Display	5-digit LCD, 40mm height
Effective Distance (Non-Contact)	50mm – 500mm
Power	700 mAh Lithium battery
Dimensions	184 × 60 × 33 mm
Weight	Approx. 140 g

Applications:

Industrial motors, pumps, fans, compressors
HVAC systems and blowers
Automotive engine RPM measurement
Textile, paper, and manufacturing industries

📥 Download HTC TM-702 Tachometer Catalogue (PDF)

Order the HTC TM-702 tachometer online from IndiaMeters.in – your trusted source for industrial test & measurement instruments in India.
