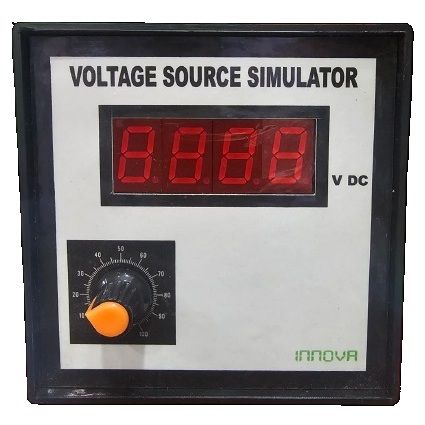

Innova Panel Mount 0–10V DC Source (96×96) — Front Potentiometer

Overview: The Innova 0–10V DC Source is a compact, panel-mounted signal source (96 × 96 mm) with a front-mounted potentiometer for easy output adjustment. Factory-configured auxiliary supply: 220VAC / 24VDC. Ideal for PLC testing, lighting dimming control, signal simulation and panel integration.

Key features

Adjustable output: 0–10V DC via front potentiometer (fine control)
Panel mount size: 96 × 96 mm (standard cutout)
Auxiliary supply (factory set): 220VAC or 24VDC
Compact, robust enclosure for panel mounting; clear front control
Low output impedance suitable for PLC/lighting driver inputs
Quick wiring terminals for fast panel installation
1-year warranty (replace with your warranty terms)

Technical specifications

Parameter	Value
Model	Innova-0-10V-PM-96
Output range	0 – 10 V DC
Max output current	10 mA (typical) — check datasheet
Potentiometer	Front panel, multi-turn (fine adjustment)
Auxiliary supply	220 VAC (factory) / 24 V DC (factory) — specify at order
Dimensions	96 × 96 mm (panel cutout standard)
Mounting	Panel mount with clamp brackets
Termination	Screw terminals at rear
Accuracy	±1% FS (confirm with datasheet)
Operating temp	-10°C to +55°C
Warranty	12 months

Why choose Innova 0–10V panel source?

Unlike handheld signal generators, this unit is designed for permanent panel integration — an easy front-panel adjustment, standardized 96×96 mounting and factory-configured auxiliary supply make it ideal for control cabinets, lighting control panels and PLC I/O testing.

Frequently asked questions (FAQ)

Q: Can I change the auxiliary supply from 220VAC to 24VDC?

A: This unit is factory set to either 220VAC or 24VDC — specify the required aux supply when ordering. For retrofitting, contact technical support.

Q: What is the maximum load the 0–10V output can drive?

A: The output is intended for voltage-input PLCs and lighting drivers; typical max sourcing is 10 mA. For heavy loads, use a buffering amplifier.

Q: Is panel cutout standard 96×96?

A: Yes — the front panel is designed for a standard 96×96 mm cutout.

Installation note: Ensure correct auxiliary supply selection (220VAC or 24VDC). Always switch off panel power before wiring. For bulk orders, contact sales for custom labeling and factory settings.
