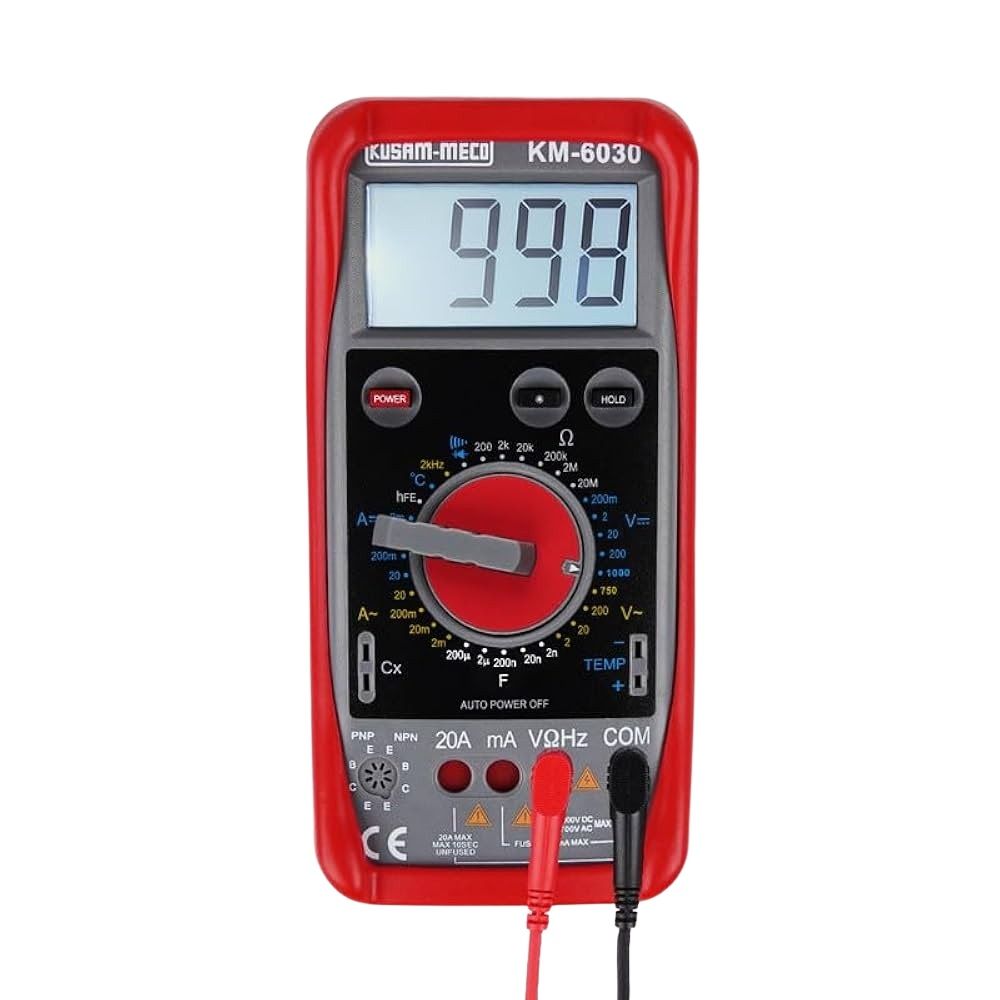

Kusam Meco KM6030 Digital Multimeter with Terminal Blocking Facility

The Kusam Meco KM6030 Digital Multimeter is a professional 3½ digit (2000 counts) digital multimeter designed for industrial electricians, maintenance engineers and panel builders. It features a terminal blocking protection mechanism for enhanced safety and misuse prevention.

This model supports AC/DC voltage, AC/DC current up to 20A, resistance, capacitance, frequency, temperature measurement and transistor hFE testing — making it a complete electrical testing solution.

Why Choose Kusam Meco KM6030?

• ✔ Terminal Blocking Facility for safety
• ✔ 3½ Digit Large LCD Display (2000 Counts)
• ✔ AC/DC Current up to 20A
• ✔ Capacitance & Frequency Measurement
• ✔ Temperature Measurement (-40°C to 1000°C)
• ✔ Diode & Continuity Buzzer
• ✔ CE Certified
• ✔ Auto Power Off & Low Battery Indication

Technical Specifications

DC Voltage

• Range: 200mV – 1000V
• Accuracy: ±(0.5%+3)
• Input Impedance: 10MΩ

AC Voltage

• Range: 2V – 700V
• Frequency Range: 40Hz–400Hz
• Accuracy: ±(0.8%+3)

DC Current

• Range: 2mA – 20A
• Overload Protection: 0.2A/250V Fuse

AC Current

• Range: 2mA – 20A
• Max Input Current: 20A

Resistance

• Range: 200Ω – 20MΩ
• Open Circuit Voltage: < 1V

Capacitance

• Range: 2nF – 200µF

Frequency

• Range: Up to 2kHz

Temperature

• Range: -40°C to 1000°C
• Resolution: 1°C

Additional Features

• Auto Zero Calibration
• Auto Polarity Display
• Data Hold Function
• Over Range Indication
• Auto Power Off after 15 Minutes
• Operating Temperature: 0°C to 40°C
• Weight: Approx. 600g

Applications

This digital multimeter is suitable for:

• Electrical Panel Testing
• Industrial Maintenance
• Transformer Testing
• Motor Testing
• HVAC Systems
• Field Service Engineers

Package Includes

• Test Leads
• Temperature Probe
• Holster
• User Manual
• Carrying Case
• 9V Battery

Frequently Asked Questions

1. What is terminal blocking facility?

It is a safety mechanism that prevents incorrect lead insertion and protects against accidental misuse.

2. Can KM6030 measure temperature?

Yes, it measures temperature from -40°C to 1000°C with 1°C resolution.

3. Is this multimeter suitable for industrial use?

Yes, it is CE certified and designed for professional electrical applications.

4. What is the maximum current rating?

It supports up to 20A AC/DC current measurement.

5. Does it have continuity buzzer?

Yes, it includes audible continuity testing.

Buy Kusam Meco KM6030 Digital Multimeter online at best price in India with fast shipping.
