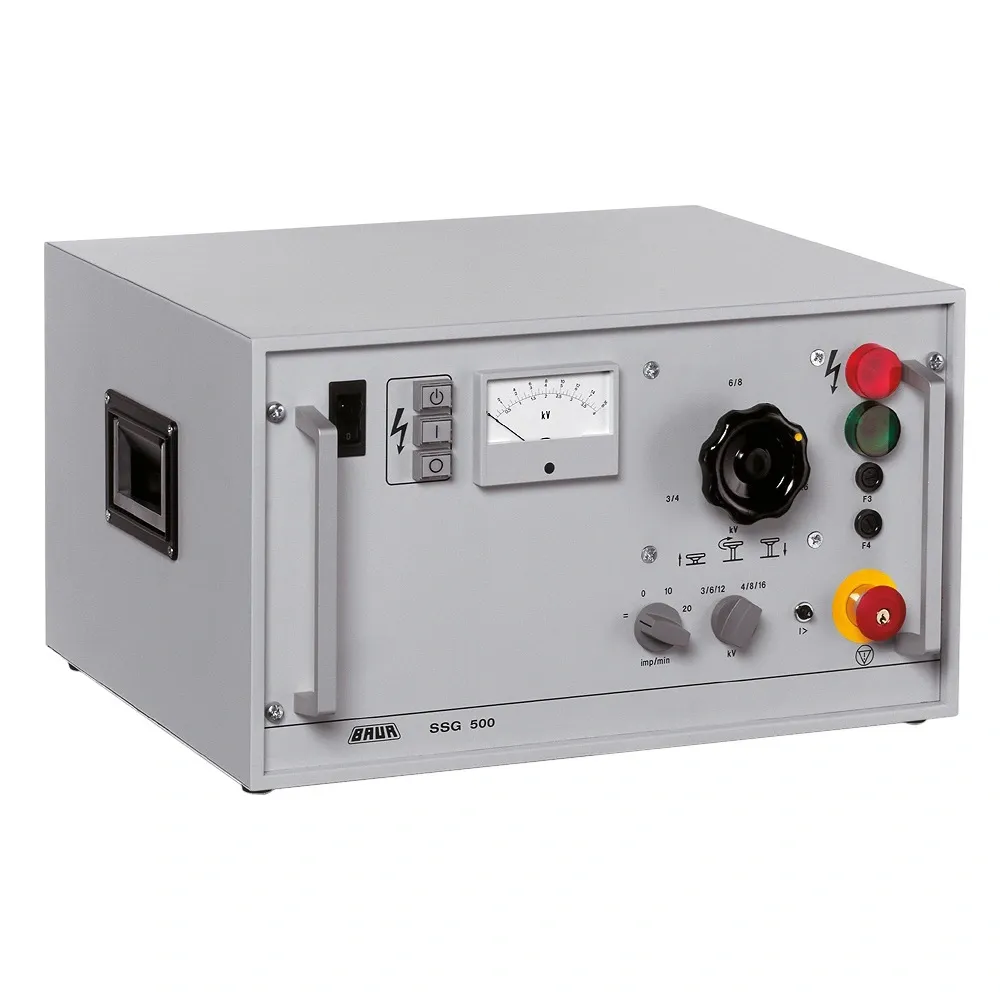

BAUR SSG 500 Surge Voltage Generator for Cable Fault Location

The BAUR SSG 500 Surge Voltage Generator is a compact high-voltage surge generator designed for pre-location and pinpointing of faults in underground power cables. It generates controlled surge voltages up to 16 kV, making it an ideal solution for cable fault location in low-voltage distribution networks.

The SSG-500 is commonly used as a cable fault thumper together with acoustic fault location systems. The high surge energy enables engineers to detect faults quickly and accurately in buried power cables.

Applications

• Underground cable fault location
• Low voltage power cable testing
• Cable sheath testing
• Pinpointing cable faults using acoustic method
• Integration with cable fault locator systems

Key Features

• Surge voltage generator up to 16 kV
• High surge energy up to 512 Joules
• 6 selectable voltage steps
• Automatic or manual surge triggering
• Rapid surge sequence up to 20 surges per minute
• DC testing voltage up to 16 kV
• High output current up to 480 mA
• Integrated automatic discharge unit
• Safety control unit compliant with EN 50191

How the Surge Voltage Generator Works

A surge voltage generator (also known as a cable fault thumper) sends high-energy voltage pulses into a faulty cable. The surge causes an acoustic signal at the fault point, allowing technicians to accurately locate the fault using acoustic detection equipment.

The BAUR SSG 500 can be combined with cable fault locating systems such as time domain reflectometers and acoustic detectors for reliable fault pinpointing.

Technical Specifications

Why Choose BAUR Surge Generators?

• High reliability for cable fault testing
• High surge energy for accurate fault detection
• Designed for professional cable testing engineers
• Robust construction for field applications

Standard Delivery

• SSG 500 surge voltage generator
• High voltage connection cable (5 m)
• Earth cable with terminal
• Mains power cord
• User manual

For complete specifications download the official datasheet:

Download BAUR SSG-500 Datasheet
