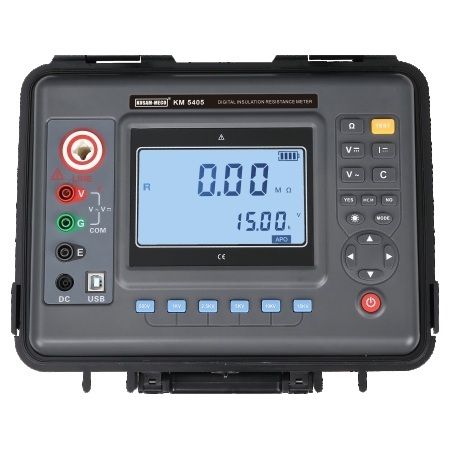

Kusam Meco KM-5405 5kV Digital Insulation Resistance Tester (Megohmmeter)

The Kusam Meco KM-5405 Insulation Tester is a high-performance 5kV digital insulation resistance tester designed for substations, transformers, motors, and high-voltage cables. With wide resistance measurement up to 10TΩ and advanced features like data storage, USB communication, and automatic discharge, it is ideal for reliable insulation testing in industrial and utility environments.

Key Features:

• Test voltages: 100V, 250V, 500V, 1000V, 2500V, 5000V
• Insulation resistance range: 0.01MΩ to 10TΩ
• Accuracy: ±3%rdg ±5dgt, Resolution: 0.01MΩ
• Large LCD display with backlight
• Functions: Insulation resistance, DC/AC voltage, current, capacitance
• Data storage up to 500 readings with USB transfer
• Polarization Index (PI) & Absorption Ratio (DAR) measurement
• Automatic discharge and safety alarm function
• IP54 protection, shockproof and moisture-proof design
• Complies with IEC61010-1, IEC61557 standards

Technical Specifications (KM-5405):

Applications:

The KM-5405 is widely used in:

• Substations for transformer and switchgear insulation testing
• Industrial plants for motors, cables, and generators
• Power utilities for preventive maintenance
• Telecommunications & IT facilities for insulation monitoring
