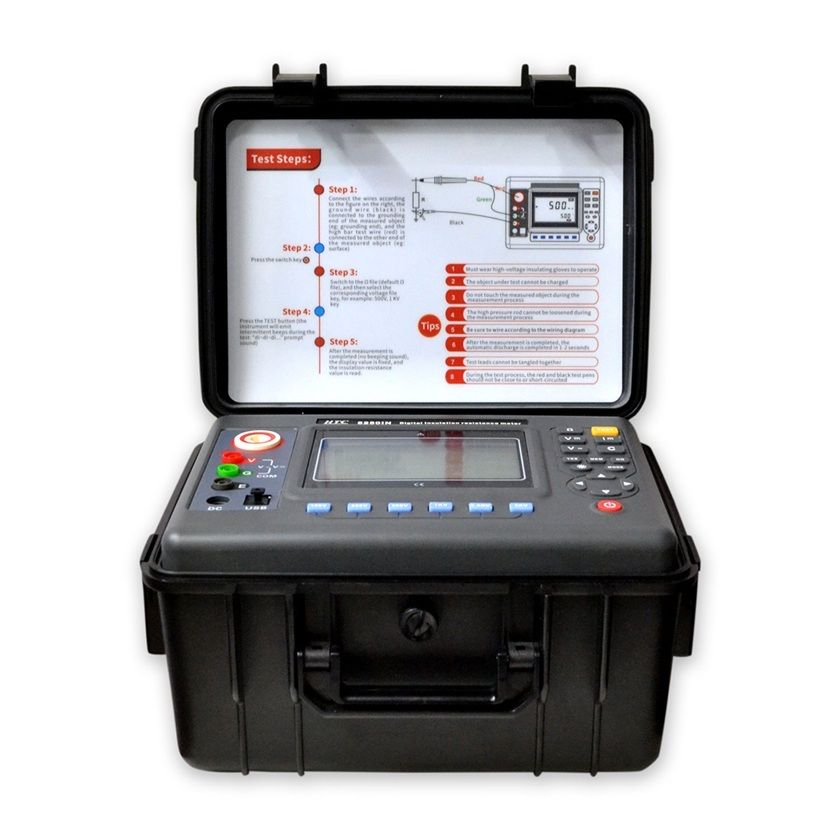

Name: HTC 8251 10KV Insulation Tester | 35TΩ Digital Insulation Resistance Meter
Brand: HTC Instruments
SKU: HTC-10KV-8251
Price: 66250.0 INR
Availability: InStock

HTC 8251 10KV Digital Insulation Resistance Tester Meter (PI, DAR) - 35TΩ Range

Product Details

Brand: HTC Instruments

MPN: 8251

The HTC 8251 is an advanced 10KV Insulation Tester designed for demanding electrical testing applications. This professional digital insulation resistance meter delivers precise measurements up to 35TΩ, making it perfect for testing high-voltage equipment like power transformers, switchgear, and industrial cables. With built-in Polarization Index (PI) and Dielectric Absorption Ratio (DAR) functions, it provides comprehensive insulation health analysis.

Key Features & Benefits

High Voltage Testing: Multiple test voltages including 250V, 500V, 1000V, 2500V, 5KV, and 10KV for comprehensive insulation testing
Extended Resistance Range: Measure insulation resistance from 0.01MΩ to an extensive 35TΩ for high-voltage applications
Advanced Diagnostic Functions: Automatic Polarization Index (PI) and Dielectric Absorption Ratio (DAR) calculations for predictive maintenance
Multi-Functional Capability: Complete electrical testing solution including voltage, current, and capacitance measurements
Enhanced Safety Features: Compliant with IEC61010-1 safety standards, CAT IV 600V rated for maximum user protection
User-Centric Design: Auto Power Off, bright digital display, USB interface for data transfer, and robust construction

Technical Specifications

Feature	Specification
Model	HTC 8251
Rated Test Voltages	250V, 500V, 1000V, 2500V, 5KV, 10KV
Insulation Resistance Range	0.01 MΩ ~ 35 TΩ
Resolution	0.01 MΩ
Accuracy	±3% rdg ±5 dgt
Output Short-circuit Current	6 mA
DC Voltage Range	0.1 ~ 1000 V
AC Voltage Range	0.1 ~ 750 V
DC Current Measurement	0.01 nA ~ 6 mA
Capacitance Test	10 nF ~ 60 uF
PI / DAR Measurement	Yes
Safety Standards	IEC61010-1, IEC1010-2-31, IEC61557-1,5, CAT IV 600V
Weight	2720 g (including battery)
Working Temperature	-10°C to 60°C
Storage Temperature	-10°C to 65°C

Recommended Applications

Power transformers and distribution transformers
High voltage switchgear and circuit breakers
Industrial motor and generator testing
Power cable and substation maintenance
Utility and power generation facilities
Industrial plant electrical maintenance

What's Included in the Box

HTC 8251 Meter (1 PC)
High Voltage Bar (1 PC Red)
High Voltage Test Lines (2 PCS - Black, Green)
Monitoring Software CD (1 PC)
USB Communication Line & Charger (1 PC)
Manual & Certificate (1 Set)
Instrument Box (1 PC)

Why Choose HTC 8251 10KV Insulation Tester?

The HTC 8251 stands out with its 10KV test voltage and 35TΩ measurement range, making it ideal for high-voltage applications where standard testers fall short. With comprehensive safety certifications and advanced diagnostic features, it's the preferred choice for electrical engineers, utility technicians, and industrial maintenance teams across India.

Ready for Professional High-Voltage Insulation Testing?

Buy the HTC 8251 10KV Insulation Tester today from IndiaMeters.in - your trusted partner for premium electrical testing equipment in India. Ensure reliable power system performance and preventive maintenance with accurate insulation testing.
