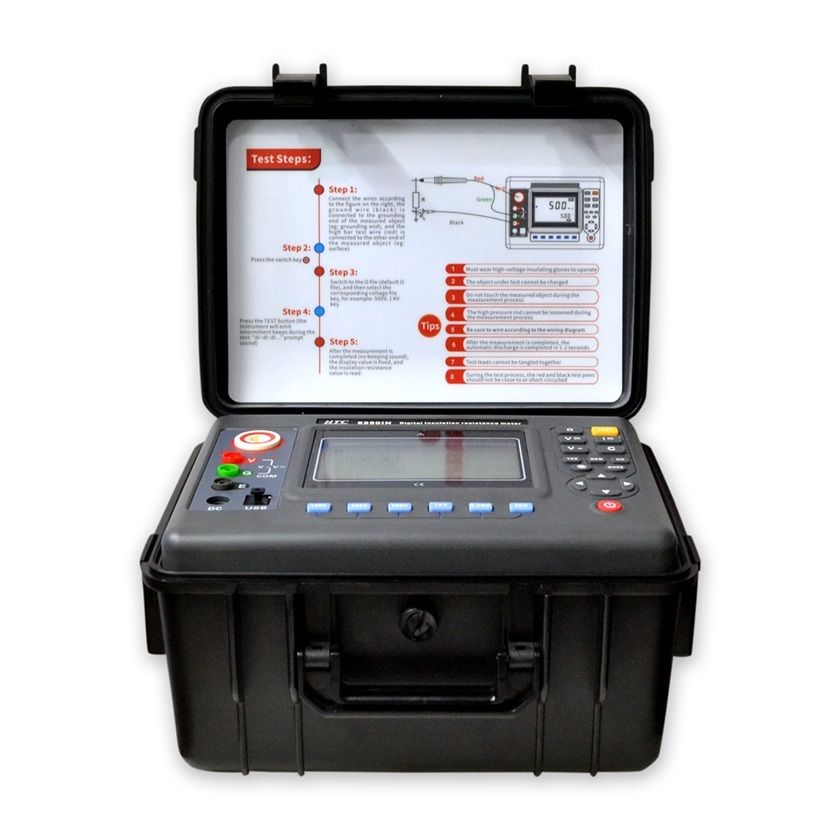

HTC 8252 15KV Digital Insulation Resistance Tester Meter (PI, DAR) - 50TΩ Range
SKU HTC-15KV-8252
₹82,750
On Sale
Price includes GST (18%) ₹12,622.88
In stock
1
Save this product for later
HTC 8252 15KV Digital Insulation Resistance Tester Meter (PI, DAR) - 50TΩ Range
Product Details
Brand: HTC Instruments
MPN: HTC-8252
The HTC 8252 is a premium 15KV Insulation Tester engineered for the most demanding high-voltage electrical testing applications. This industrial-grade digital insulation resistance meter delivers exceptional accuracy up to 50TΩ, making it the ultimate choice for testing extra-high voltage equipment like power transformers, HV cables, and utility substations. With advanced Polarization Index (PI) and Dielectric Absorption Ratio (DAR) capabilities, it provides unparalleled insulation diagnostics.
Key Features & Benefits
- Ultra High Voltage Testing: Comprehensive test voltages including 500V, 1000V, 2500V, 5KV, 10KV, and 15KV for maximum application coverage
- Industry-Leading Resistance Range: Measure insulation resistance from 0.01MΩ to an exceptional 50TΩ - the highest in the HTC series
- Advanced Diagnostic Capabilities: Automatic Polarization Index (PI) and Dielectric Absorption Ratio (DAR) for predictive maintenance and insulation health assessment
- Multi-Function Testing Platform: Complete electrical testing suite including DC/AC voltage, current, and capacitance measurements
- Maximum Safety Compliance: Built to IEC61010-1 safety standards, CAT IV 600V rated with enhanced protection features
- Professional Data Management: USB interface for data transfer, Auto Power Off, large digital display, and rugged industrial construction
Technical Specifications
| Feature | Specification |
|---|---|
| Model | HTC 8252 |
| Rated Test Voltages | 500V, 1000V, 2500V, 5KV, 10KV, 15KV |
| Insulation Resistance Range | 0.01 MΩ ~ 50 TΩ |
| Resolution | 0.01 MΩ |
| Accuracy | ±3% rdg ±5 dgt |
| Output Short-circuit Current | 6 mA |
| DC Voltage Range | 0.1 ~ 1000 V |
| AC Voltage Range | 0.1 ~ 750 V |
| DC Current Measurement | 0.01 nA ~ 6 mA |
| Capacitance Test | 10 nF ~ 60 uF |
| PI / DAR Measurement | Yes |
| Safety Standards | IEC61010-1, IEC1010-2-31, IEC61557-1,5, CAT IV 600V |
| Weight | 2720 g (including battery) |
| Working Temperature | -10°C to 60°C |
| Storage Temperature | -10°C to 65°C |
Professional Applications
- Extra-high voltage power transformers (EHV transformers)
- Utility substations and switchyards
- High voltage cable testing and maintenance
- Power generation plants (thermal, hydro, nuclear)
- Industrial mega projects and large manufacturing facilities
- Transmission line and distribution system testing
- Electrical contractors specializing in high voltage systems
Why HTC 8252 is the Ultimate Choice?
Highest Voltage Rating
15KV test voltage for the most demanding applications
Maximum Range
50TΩ measurement capability - highest in its class
Professional Grade
Built for utility companies and industrial applications
Advanced Diagnostics
Complete PI/DAR analysis for predictive maintenance
What's Included in the Box
- HTC 8252 Meter (1 PC)
- High Voltage Bar (1 PC Red)
- High Voltage Test Lines (2 PCS - Black, Green)
- Monitoring Software CD (1 PC)
- USB Communication Line & Charger (1 PC)
- Manual & Certificate (1 Set)
- Instrument Box (1 PC)
Ideal For
The HTC 8252 is specifically designed for utility engineers, power plant technicians, industrial maintenance teams, and high-voltage electrical contractors who require the highest level of insulation testing capability. This instrument meets the rigorous demands of power transmission companies, large industrial plants, and electrical testing service providers across India.
Ready for the Highest Level of Insulation Testing?
Purchase the HTC 8252 15KV Insulation Tester today from IndiaMeters.in - your premier destination for professional electrical testing equipment in India. Experience unmatched performance in high-voltage insulation testing with the most advanced features available.
