Kusam Meco KM5100 Multifunction Installation Tester

Name: Kusam Meco KM 5100 Multifunction Installation Tester | Insulation & Earth Resistance Tester
Brand: Kusam Meco
SKU: Kusam-Meco-KM-5100
Price: 80500.0 INR
Availability: InStock

Home/Home/Insulation Tester

Product Details

Brand: Kusam Meco

MPN: KM-5100

ISO 9001:2015 Certified | CAT IV 400V Safety Rated

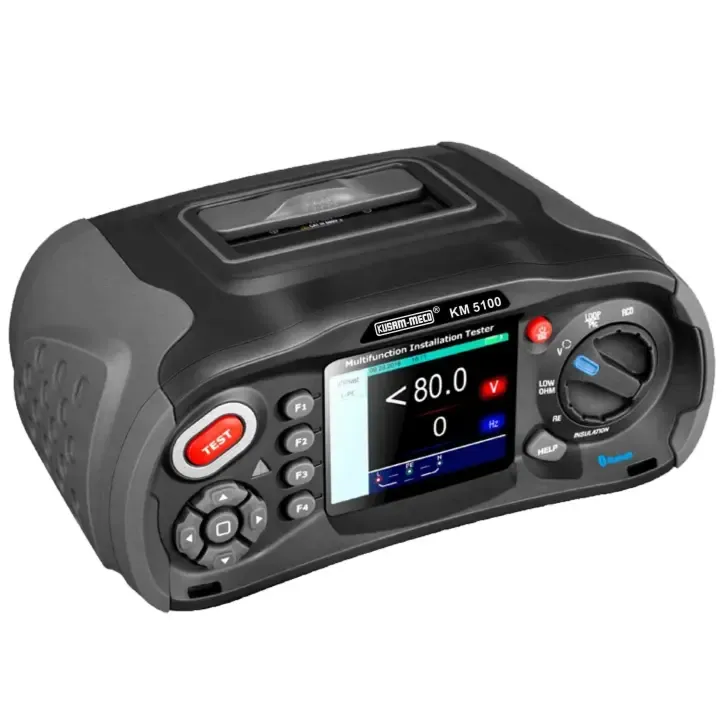

The Kusam Meco KM 5100 Multifunction Installation Tester is a professional-grade electrical testing instrument designed to ensure the safety and compliance of electrical installations in domestic, commercial, and industrial applications. Featuring a 3.5" TFT color LCD display, this rugged tester provides accurate measurements for insulation resistance, earth resistance, loop impedance, voltage, RCD, PFG, and PSC testing.

Key Features & Benefits

3.5" TFT Color LCD Display - 320x240 pixels for clear, safe readings with wide viewing angle
Fast High-Current Loop Testing - Quick and accurate loop impedance measurements
Variable RCD Testing - Customizable settings with PASS/FAIL indication for safety compliance
Bluetooth & USB Interface - Wireless data transfer and connectivity options
SD Memory Card Support - Expanded data storage capacity
Safe Earth Voltage Detection - Automatically detects dangerous voltages >50V
Slim Probes with Test Button - Ergonomic design for easy, reliable operation
Multiple Voltage Measurements - Select between L-N, L-PE, and N-PE configurations
Automatic Test Lead Compensation - Ensures accurate readings every time

Who Should Use the KM 5100?

Electricians & Contractors

Perfect for routine electrical installation testing and safety verification

Industrial Maintenance Teams

Essential for plant maintenance and preventive electrical safety checks

Facility Management

Ideal for commercial building maintenance and compliance testing

Safety Inspectors

Professional tool for regulatory compliance and safety audits

Technical Specifications

Insulation Resistance Testing

Terminal Voltage	Range	Resolution	Accuracy	Test Current
125V	0.125 ~ 4000MΩ	0.001MΩ	± (2% + 10)	1mA @ 125kΩ
250V	0.250 ~ 4000MΩ	0.001MΩ	± (2% + 10)	1mA @ 250kΩ
500V	0.500 ~ 4000MΩ	0.001MΩ	± (2% + 10)	1mA @ 500kΩ
1000V	1.000 ~ 4000MΩ	0.001MΩ	± (3% + 10)	1mA @ 1MΩ

Loop Impedance Testing

Test Type	Range (Ω)	Resolution	Accuracy	Test Current
L-PE (Hi-Amp)	0.00 ~ 999Ω	0.01Ω	± (4% + 6 digits)	High Current
L-PE (No Trip)	0.00 ~ 999Ω	0.01Ω	± (5% + 6 digits)	15mA
L-N	0.00 ~ 999Ω	0.01Ω	± (4% + 4 digits)	2.0A

Earth Resistance

Range	Resolution	Accuracy
0.00 ~ 99.99Ω	0.01Ω	± (2% + 30 digits)
100.0 ~ 999.9Ω	0.1Ω	± (2% + 6 digits)
1000 ~ 2000Ω	1Ω	± (2% + 6 digits)

General Specifications

RCD Testing	x½, x1, x2, x5 with 1.5% ~ -9% accuracy
Voltage Measurement	80-500V AC/DC, 45-400Hz, ± (2% + 2 digits)
Continuity Beeper	Operates at ≤35Ω with ≥200mA test current
Low Ohm Range	4.000Ω, 40.00Ω, 400.0Ω with high accuracy
Dimensions	242(L) × 105(W) × 145(H) mm
Weight	Approx. 1.56 kg
Safety Standards	EN 61010-1, CAT IV 400V, CE, EMC & LVD Compliant

What's Included in the Box?

KM 5100 Multifunction Installation Tester
Test Leads with Switch
Clip Type Connectors
Round Connectors
US/EU/UK/AU Power Adapters
USB Cable & Car Charging Cable
TF Card (SD Memory)
User Manual CD
Carrying Case & Lanyard
Battery

Optional Accessories

Test Lead Set & Spikes (2 nos.) for Earth Resistance Testing

Why Choose Kusam Meco KM 5100?

✅ Indian Brand

Trusted Indian brand with ISO 9001:2015 certification

✅ Superior to Competitors

Color TFT display, Bluetooth, and SD card support at competitive pricing

✅ Complete Testing Solution

All essential electrical tests in one robust device

✅ Local Support

Direct manufacturer support and service in India
