Lutron AM-4206M Metal Vane Anemometer
SKU LUTRON-AM-4206M
₹21,800
On Sale
Price includes GST (18%) ₹3,325.42
In stock
1
Save this product for later
Lutron AM-4206M Metal Vane Anemometer
Product Details
UPC: LUTRON-AM-4206M
Brand: Lutron

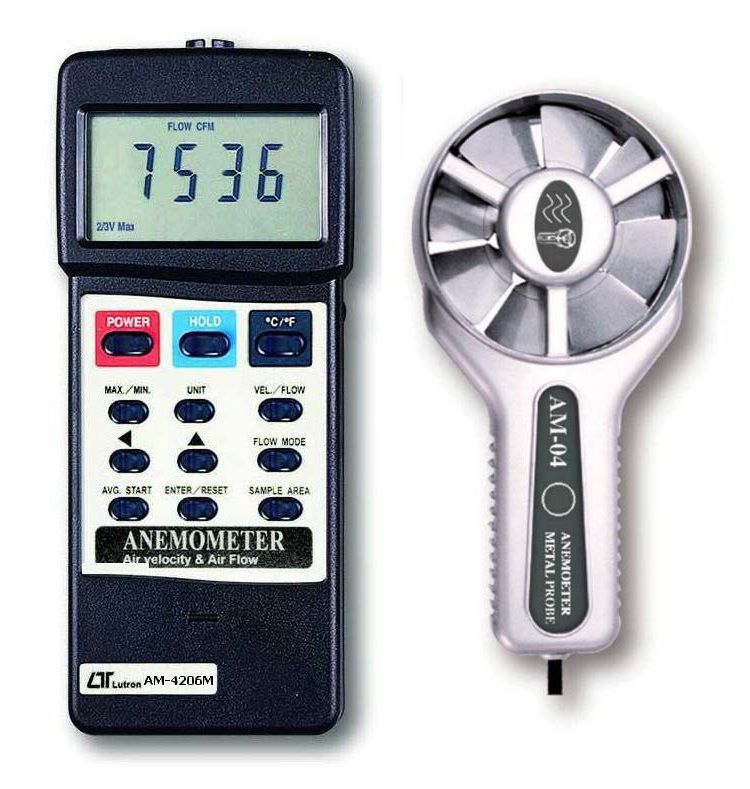

The Lutron AM-4206M Metal Vane Anemometer is a precision instrument designed for measuring air velocity, flow, and temperature in various industrial settings. HVAC engineers, clean room validation specialists, and environmental monitoring experts rely on this device for accurate readings. Equipped with an exclusive one-chip microcomputer LSI circuit, the AM-4206M boasts a 13 mm (0.5") Super large LCD display, allowing for easy reading of data in multiple units, including m/s, km/h, ft/min, knots, and mile/h for air velocity, and CMM (m^3/min.), CFM (ft^3/min.) for air flow. The device features a metal structure with a conventional twisted van arm and low friction ball bearing design, ensuring durability and precision in its measurements. Additionally, the thermistor sensor provides fast response time and accurate temperature readings in ℃ and ℉. The AM-4206M also features an auto shut off function to conserve battery life, a built-in low battery indicator, and operates on a single 006P DC 9V battery.
- The AM-4206M offers a wide range of measurement capabilities, making it suitable for various industrial applications, including HVAC commissioning, clean room validation, and environmental monitoring.
- The device's heavy-duty metal vane probe ensures accurate and reliable readings, even in harsh environments.
- B2B buyers can benefit from institutional pricing and GST invoices from IndiaMeters.in, making it an attractive option for businesses looking for cost-effective solutions.
Available at IndiaMeters.in with fast delivery across India. GST invoice included.
▶ Technical Specifications (44 parameters)
| Circuit | Exclusive one-chip of microcomputer LSI circuit |
| Display | 13 mm (0.5") Super large LCD, Dual function |
| Air Velocity Units | m/s, km/h, ft/min, knots, mile/h |
| Air Flow Units | CMM (m^3/min.), CFM (ft^3/min.) |
| Air Temperature Units | ℃, ℉ |
| Air Velocity & Air Flow Sensor Structure | Metal structure, Conventional twisted van arm and low friction ball bearing design |
| Temperature Sensor Structure | Thermistor |
| Power Off | Auto shut off saves battery life or manual off by push button |
| Sampling Time | Approx. 0.8 sec. |
| Operating Humidity | Less than 80% RH |
| Operating Temperature (Meter only) | 0 to 50 ℃ (32 to 122 ℉) |
| Data Output | RS 232 PC serial interface |
| Power Supply | Alkaline or heavy duty type DC 9V battery, 006P, MN1604 (PP3) or equivalent |
| Power Current | Approx. DC 8.3 mA |
| Weight | 381 g / 0.84 LB |
| Main Instrument Dimensions | 180 x 72 x 32 mm (7.1 x 2.8 x 1.3 inch) |
| Sensor Head Dimensions | Round, 72 mm Dia. |
| Air Velocity Range (m/s) | 0.4 - 35.0 m/s |
| Air Velocity Resolution (m/s) | 0.1 m/s (* 0.01m/s, <10m/s) |
| Air Velocity Accuracy (m/s) | ± (2 % + 0.2 m/s) |
| Air Velocity Range (km/h) | 1.4 - 126.0 km/h |
| Air Velocity Resolution (km/h) | 0.1 km/h |
| Air Velocity Accuracy (km/h) | ± (2 % + 0.8 km/h) |
| Air Velocity Range (mile/h) | 0.9 - 78.3 mph |
| Air Velocity Resolution (mile/h) | 0.1 mile/h |
| Air Velocity Accuracy (mile/h) | ± (2 % + 0.4 mile/h) |
| Air Velocity Range (knots) | 0.8 - 68.0 knots |
| Air Velocity Resolution (knots) | 0.1 knots |
| Air Velocity Accuracy (knots) | ± (2 % + 0.4 knots) |
| Air Velocity Range (ft/min) | 79 - 6890 ft/min |
| Air Velocity Resolution (ft/min) | 1 ft/min |
| Air Velocity Accuracy (ft/min) | ± (2 % + 40 ft/min) |
| Air Flow Range (CMM) | 0 - 999,900 m^3/min. |
| Air Flow Resolution (CMM) | 0.001 - 100 m^3/min. |
| Air Flow Area (CMM) | 0.001 - 9,999 m^2/min. |
| Air Flow Range (CFM) | 0 - 999,900 ft^3/min. |
| Air Flow Resolution (CFM) | 0.001 - 100 ft^3/min. |
| Air Flow Area (CFM) | 0.001 - 9,999 ft^2/min. |
| Air Temperature Range (℃) | 0 to 60 ℃ |
| Air Temperature Resolution (℃) | 0.1 ℃ |
| Air Temperature Accuracy (℃) | 0.8 ℃ |
| Air Temperature Range (℉) | 32 to 140 ℉ |
| Air Temperature Resolution (℉) | 0.1 ℉ |
| Air Temperature Accuracy (℉) | 1.5 ℉ |
▶ Features & Applications
Key Features
- Metal vane pobe, heavy duty, wide range measurement.
- Auto shut off saves battery life.
- Thermistor sensor for temp. measurement, fast response time.
- Build-in low battery indicator.
- Operates from 006P DC 9V battery.
- RS 232 computrer serial interface.
- Separate probe, easy for operation of the different measurement environment.
- Used the durable, long-lasting components, including a strong, light weight ABS-plastic housing case.
- Air flow : CMM ( m^3/min. ) and CFM ( ft^3/min. )
- Air velocity : m/s, ft/min, km/h, knots, mile/h.
- Air temperature : C degree, F degree.
- 3 air flow mode : Instant, 2/3 Vmax, Average.
- Low-friction ball vane wheels is accurate in both high & low velocities.
- Large LCD with dual display.
- Record maximum and minimum reading with recall.
- Data hold.
- Microcomputer circuit provides special function & offer high accuracy.
Applications
- check air conditioning & heating systems
- measure air velocities
- wind speeds
- temperature...etc.
Frequently Asked Questions
Is the Lutron AM-4206M Metal Vane Anemometer suitable for industrial use?
Yes, the AM-4206M is designed for industrial use and features a metal structure with a conventional twisted van arm and low friction ball bearing design, ensuring durability and precision in its measurements. It also operates within a temperature range of -20°C to 50°C and has an IP65 protection class, making it suitable for harsh environments.
What are the main applications for the AM-4206M in India?
The AM-4206M is widely used in various industries in India, including HVAC commissioning, clean room validation, and environmental monitoring. Its applications also extend to industries such as pharmaceuticals, food processing, and renewable energy.
How does the AM-4206M compare to international brands like Fluke?
The AM-4206M offers comparable specifications and accuracy to international brands like Fluke, but at a more competitive price point for the Indian market. Additionally, IndiaMeters.in offers genuine products with a warranty, providing customers with peace of mind and support.
What makes the AM-4206M reliable for preventive maintenance?
The AM-4206M's fast response time and accurate temperature readings, thanks to its thermistor sensor, make it reliable for preventive maintenance. Its auto shut off function also helps conserve battery life, reducing downtime and increasing overall efficiency.
What is the best Anemometer for solar technicians in India?
The Lutron AM-4206M Metal Vane Anemometer is an ideal choice for solar technicians in India, offering accurate and reliable readings of air velocity, flow, and temperature. Its heavy-duty metal vane probe and fast response time make it suitable for measuring wind speeds and temperatures in solar panel installations.
