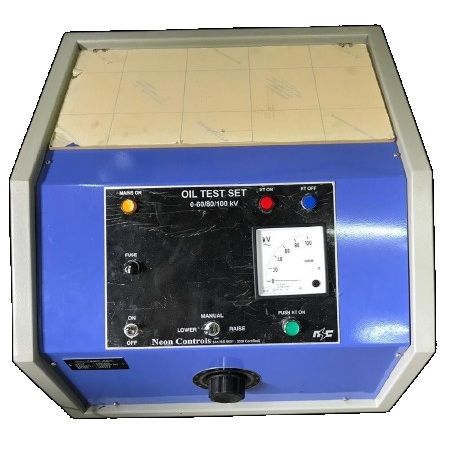

OTS-100 Transformer Oil BDV Test Kit | 100KV Breakdown Voltage Tester

The OTS-100 Transformer Oil BDV Test Kit is a precision instrument for measuring the Breakdown Voltage (BDV) of insulating oils used in transformers, circuit breakers, and other high-voltage equipment. Compliant with IS 6792:1972 and IEC 156, this motorized oil BDV tester ensures accurate and reliable results for both new and used insulating oils.

Key Features of OTS-100 BDV Test Kit

• Motorized & Manual Operation - Offers both automated and manual control for flexibility in testing.
• High Voltage Output (0-100 KV) - Suitable for a wide range of insulating oils including transformer oil, circuit breaker oil, and capacitor oil.
• Memory Effect Voltmeter - Locks the breakdown voltage value for easy recording, even after the circuit trips.
• Safety Interlock System - Automatically cuts off high voltage when the chamber door is opened, ensuring operator safety.
• Compliant with IS 6792:1972 & IEC 156 - Meets international standards for oil testing.
• Robust Metal Cabinet - Durable construction with heavy-duty handles for portability.
• Precision Spherical Electrodes - Made of brass/bronze with adjustable gap setting (2.5mm) for consistent and accurate results.

Technical Specifications

• Model: OTS-100
• Output Voltage: 0-100 KV AC
• Input Voltage: 230V ±10%, 50Hz Single Phase
• Display: Linear Scaled AC Rectifier Voltmeter (kV)
• Test Cup: Methyl Methacrylate (Acrylic), 300-500 ml capacity
• Electrode Gap: 2.5 mm (adjustable with GO-NOGO gauge)
• Safety: H.T. Chamber Door Interlocking & Fast-Acting DC Relay
• Operation: Motorized and Manual

Applications of Oil BDV Test Set

• Transformer Oil BDV Testing
• Circuit Breaker Oil Analysis
• Oil-filled Cable Insulation Testing
• Capacitor Oil Dielectric Strength Test
• Quality Control of New and Used Insulating Oils

Product Includes

• Main Test Unit
• Test Vessel with Electrodes
• Stainless Steel GO-NOGO Gauge
• Mains Power Cord
• Operating Manual
• Factory Calibration Certificate
• Warranty Certificate

Why Choose Our Transformer Oil BDV Test Kit?

Our OTS-100 BDV test kit is designed for accuracy, safety, and ease of use. It is widely used in power utilities, transformer manufacturing units, and testing laboratories for routine and acceptance testing of insulating oils. The motorized operation allows for uniform voltage rise (2kV/s) as per standards, and the memory voltmeter ensures no reading is missed.

Note: Technical specifications and appearance are subject to change without prior notice.
