80KV AC High Voltage Test Set - 200mA
SKU ACHV-80K200
₹220,000
On Sale
Price includes GST (18%) ₹33,559.32
In stock: 1 available
1
Save this product for later
80KV AC High Voltage Test Set - 200mA
Product Details
Brand: Innova
MPN: ACHV-80K200
80KV AC High Voltage Test Set - 200mA Capacity
Product Highlights
- 80KV AC Output with Variable Voltage Control
- 200mA Capacity with Selectable Steps (50-100-200mA)
- Digital Panel Meter for KV and Leakage Current
- Zero Start Safety Feature
- Oil Natural Cooled for Efficient Performance
- 2-Year Warranty
Technical Specifications
| Input Voltage | 400V, Two Phase (Of Three Phase), 50 Hz, AC |
| Output Voltage | 0 - 80 KV AC Variable |
| Capacity | 200 mA (settable by rotary switch in steps of 50-100-200 mA) |
| Duty Cycle | Intermittent (with 1 min. Withstand test) |
| Cooling System | Oil Natural Cooled |
| Metering | Digital Kilovolt Meter & Digital Milliammeter |
| Protection | Overcurrent Relay, Zero Start Interlock, Fuse Protection |
Applications
Our 80KV AC High Voltage Test Set is ideal for testing dielectric strength of:
- Different insulating materials
- Motor windings and transformers
- Ceramic HV insulators
- Power cables and electrical components
- HV motor manufacturing industries
- Transformer manufacturing and repair industries
- Power generation stations
Key Features
- Microprocessor-based digital meters for accurate readings
- Automatic tripping mechanism for overload and short circuit protection
- Zero-start interlock for operator safety
- Sturdy powder-coated steel cabinet
- Easy mobility with casting wheels
- Comprehensive protection scheme
- Includes 5-meter power cord and interconnecting cable
- Comes with operating manual, test report, and warranty certificate
Frequently Asked Questions
What is the purpose of this High Voltage Test Set?
This equipment is designed to test the dielectric strength of various insulating materials, transformers, motor windings, cables, and electrical components by applying high AC voltage up to 80KV.
What safety features are included?
The test set includes multiple safety features: zero-start interlock, overcurrent protection, automatic tripping mechanism, and fuse protection on both input and output sides.
What is included in the package?

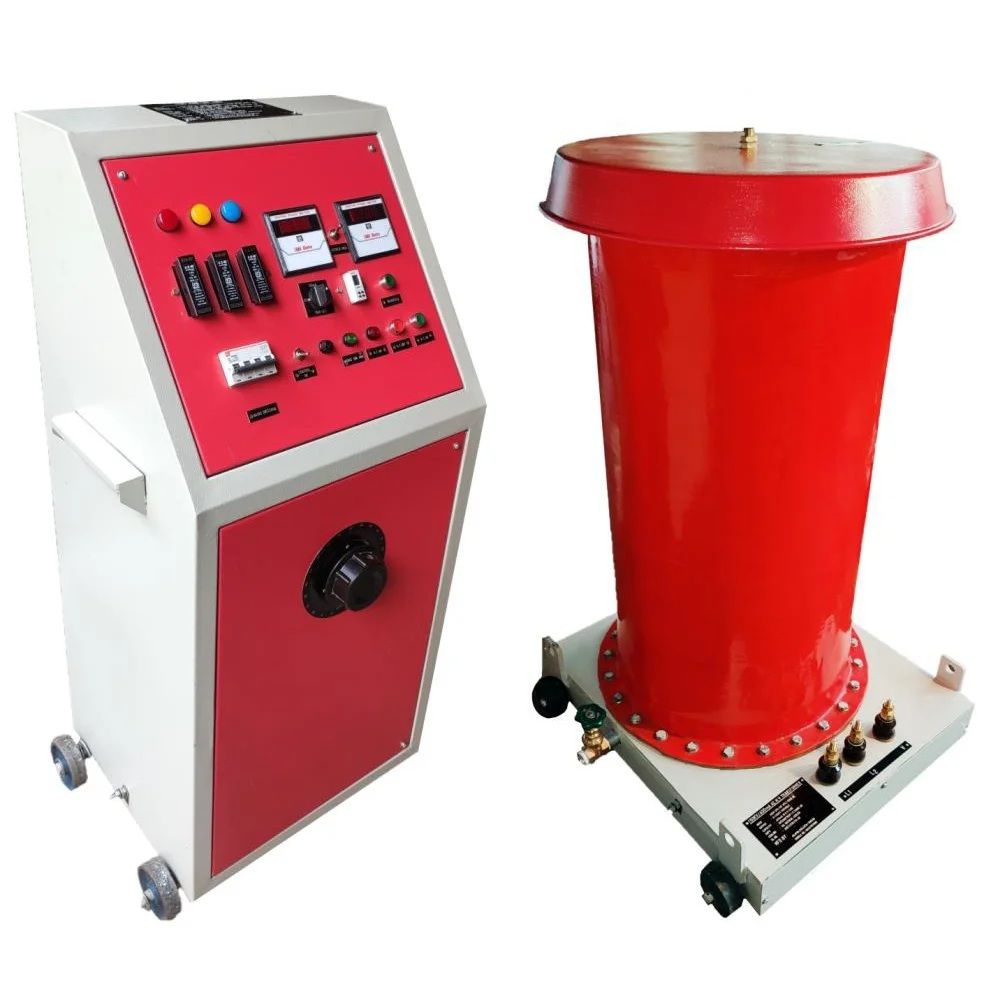

The package includes: Control Panel Unit, High Voltage Transformer Unit, 5-meter input mains power cord, 5-meter interconnecting cable, operating manual, works test report, and warranty certificate.
